24" Wide Bottom Freezer Refrigerator - FFBF235PL

SummitSummit brand logo
This product has been discontinued by the manufacture and is no longer available.

24" Wide Bottom Freezer Refrigerator

Model: FFBF235PL

24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL24" Wide Bottom Freezer Refrigerator FFBF235PL
24" Wide Bottom Freezer Refrigerator FFBF235PL
24" Wide Bottom Freezer Refrigerator FFBF235PL
24" Wide Bottom Freezer Refrigerator FFBF235PL
24" Wide Bottom Freezer Refrigerator FFBF235PL
24" Wide Bottom Freezer Refrigerator FFBF235PL
+3more

Color : Stainless Steel Look

24" Wide Bottom Freezer Refrigerator FFBF235PL
Stainless Steel Look

Key Features

  • Counter Depth Bottom Freezer Refrigerator

  • ENERGY STAR certified

  • Stainless steel look

  • Humidity controlled crisper

  • No-frost operation

  • Convertible crisper/deli drawer

  • Adjustable glass shelves

  • Digital controls

Read More

Description

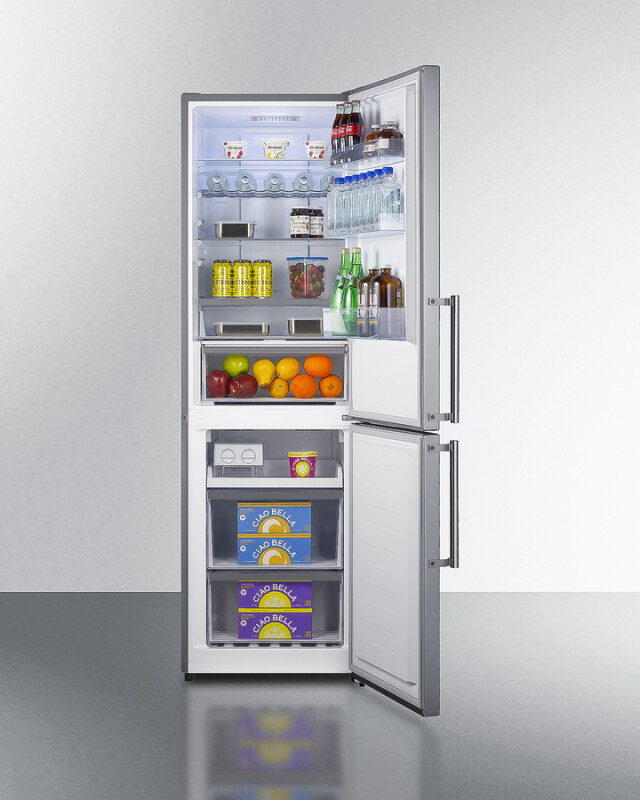

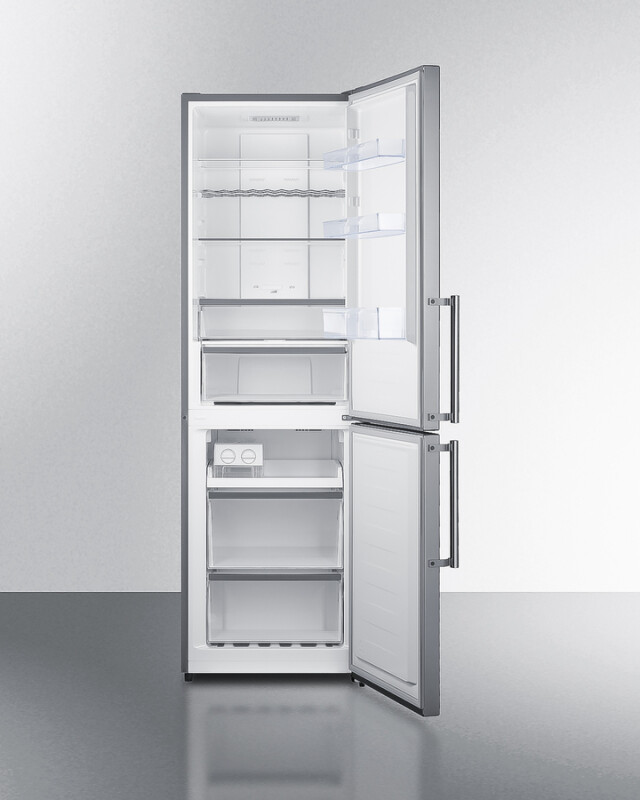

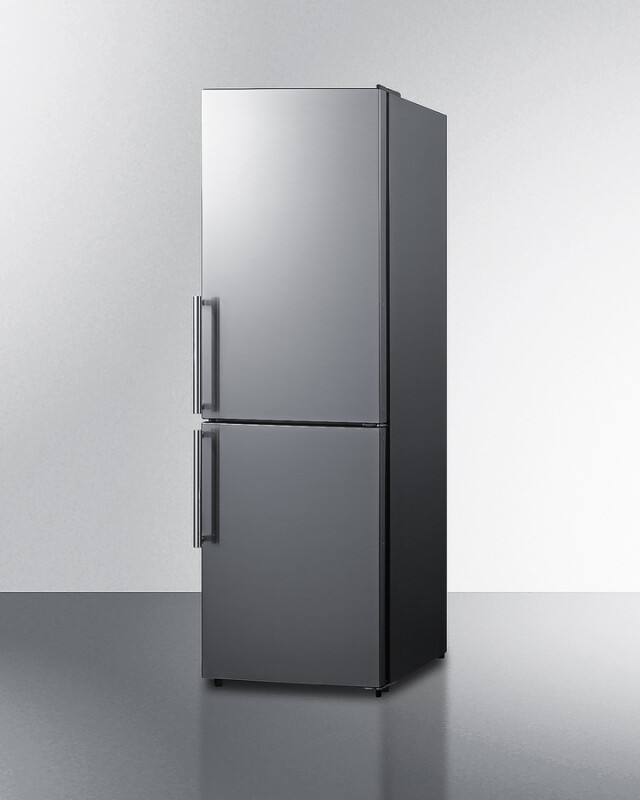

Summit's thin-line series of ENERGY STAR-certified counter-depth bottom freezer refrigerators conserves energy and space but adds quality and function with innovative features, convenient sizes, and energy-efficient operation. At 23.25" deep and 23.5" wide, the FFBF235PL offers 10.8 cu. Ft. of storage capacity, ideal for space-challenged kitchens with complete refrigeration needs. Reversible doors allow you to adjust the door swing to best suit your space. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience, paired with two handles in the same finish. The side cabinet features a textured gray finish. The unit features a sealed back and right-angle plug for added space savings in smaller kitchens. Inside, the FFBF235PL comes fully featured for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes adjustable shelves made from safety glass for durability and easy cleaning. An innovative touch control system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. Super Freeze setting allows you to rapidly cool the freezer section, which is ideal for newly loaded groceries. The unit is laboratory-tested to ensure quiet operation at under 33 decibels. Our FFBF235PL includes a large humidity-controlled crisper drawer and a second meat drawer that can hold colder temperatures for deli items or easily convert to a regular crisper. The large freezer section features one shelf and two slide-out storage drawers with clear plastic fronts. These fronts help to protect your frozen goods from warmer ambient temperatures when the door is opened. With its elegant design, unique size, and complete storage capacity, the FFBF235PL is the perfect energy-efficient addition to any kitchen looking to bring true quality, modern style, and energy savings in a smaller footprint than standard household refrigerators. This is a bottom-mount freezer model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications
Certifications

Features

Counter Depth Bottom Freezer Refrigerator

10.8 cu. Ft. Refrigerator-freezer in a unique 23.5" W x 23.25" D fit is ideal for smaller kitchens and apartments

ENERGY STAR certified

This unit is recognized as an efficient appliance by ENERGY STAR standards

Stainless steel look

Doors offer the look of stainless steel complete with a horizontal grain but the easier cleanability of a fingerprint-resistant steel finish

Humidity controlled crisper

Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables

No-frost operation

Frost-free operation for minimum user maintenance

Convertible crisper/deli drawer

Additional crisper allows you to store meats and deli items at a slightly colder temperature or convert to a second crisper using the easy slide control

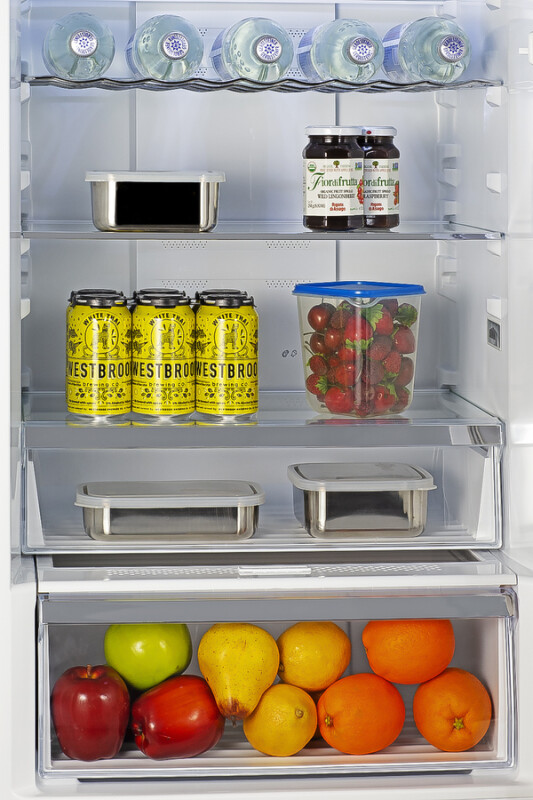

Adjustable glass shelves

Steel-trimmed shelves users can rearrange to accommodate all shapes and sizes or remove shelves for a simple clean-up

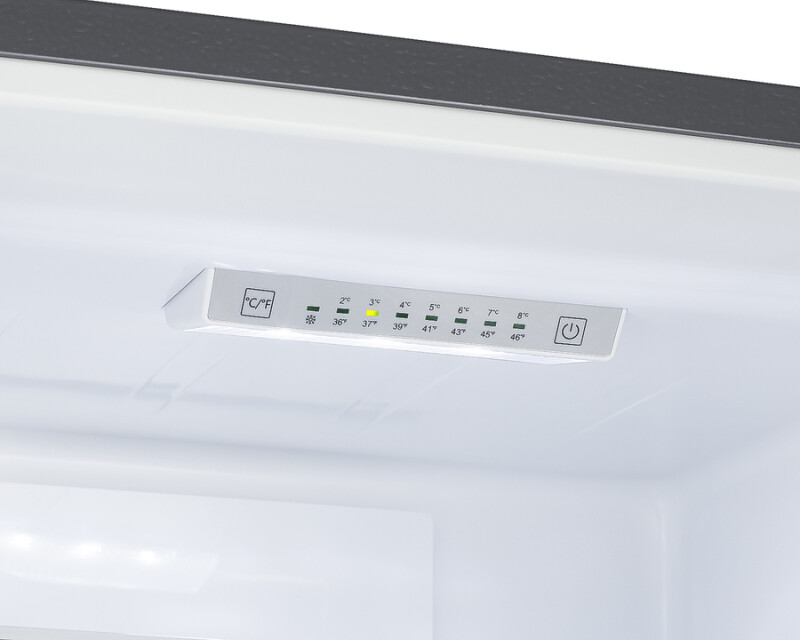

Digital controls

Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator temperature at the touch of a button

Adjustable door storage

Store tall bottles and condiments right on the door for convenient access

Scalloped steel rack

The unit features one adjustable scalloped rack to store and chill your favorite beverages

Interior LED lighting

Refrigerator section includes automatic LED lighting for an energy-efficient view

Quiet operation

Runs at just 32.9 dB for a quiet performance that won't disturb anyone in your kitchen

Intensive freezing function

Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature

Bottom freezer drawers

Two slide-out freezer drawers include clear plastic fronts to maximize convenience and accessibility

Easy-to-use ice tray included

Includes a convenient ice tray with a storage bin and crank system for easier ice retrieval

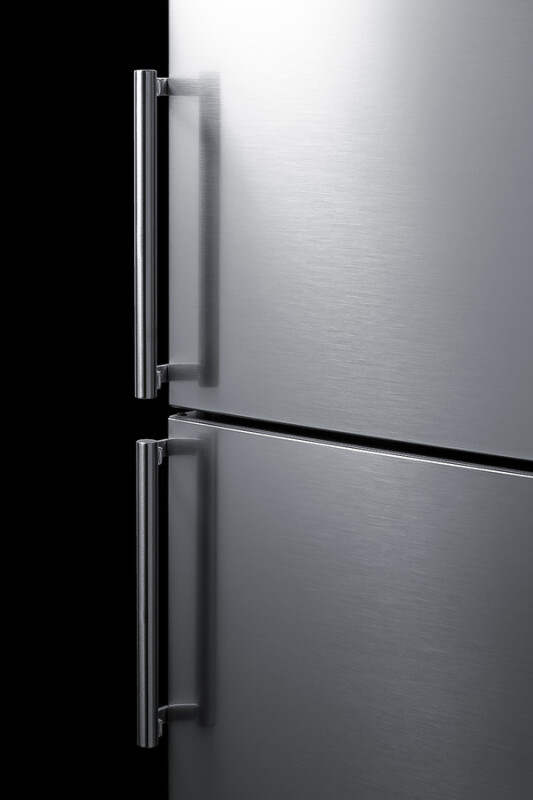

Designer handles

Brushed steel handles offer a modern look for the refrigerator

Fully finished cabinet

Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding

Sealed back

Space-saving convenience with easier cleanability

Reversible doors

User-reversible door swing for added flexibility

Right angle plug

The right-angle design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Certifications

ENERGY STAR certification

ENERGY STAR

Specifications

Warranty

Parts1 Year
Labor1 Year

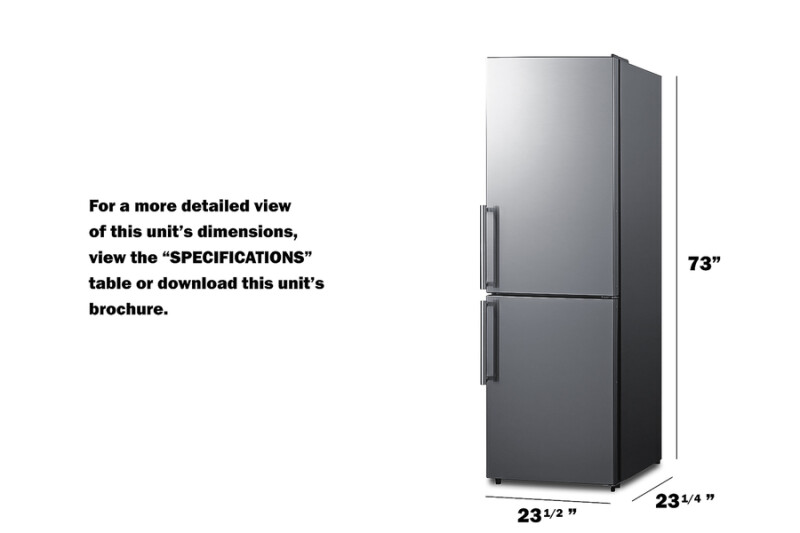

Overview

Nominal Height73.0" (185 cm)
Height of Cabinet72.5" (184 cm)
Height to Hinge Cap73.0" (185 cm)
Nominal Width24.0" (61 cm)
Width23.5" (60 cm)
Nominal Depth24.0" (61 cm)
Depth23.25" (59 cm)
Depth with Handle25.75" (65 cm)
Depth with door at 90°44.63" (113 cm)
Capacity10.8 cu.ft. (306 L)
Defrost TypeFrost-Free/Automatic
DoorStainless Look
CabinetGray
US Electrical SafetyCSA
Canadian Electrical SafetyCSA-C
Energy Usage/Year391.0kWh/year
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Weight135.0 lbs. (61 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101103563

Refrigerator-Freezer

Door SwingRHD
ReversibleYes
Adjustable ShelvesYes
Interior DrawersYes
Drawer Qty4
Crisper Qty2
Crisper FinishTransparent
Crisper CoverPlastic
Wine Bottle ShelvingYes
Interior LightYes
Refrigerator - Interior Height37.0" (94 cm)
Refrigerator - Interior Width20.5" (52 cm)
Refrigerator - Interior Depth17.75" (45 cm)
Refrigerator - Capacity7.35 cu.ft
Refrigerator - Shelf TypeGlass and Scalloped
Refrigerator - Shelf Qty3
Refrigerator - Full Door Shelves2
Freezer - Interior Height26.75" (68 cm)
Freezer - Interior Width17.0" (43 cm)
Freezer - Interior Depth14.0" (36 cm)
Freezer - Capacity3.43 cu.ft
Freezer - Shelf TypeDrawers
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount1.58 oz.
High Side PSI250.0
Low Side PSI88.0
Level Legs2
Interior Height - Drawer 15.5" (14 cm)
Interior Width - Drawer 120.5" (52 cm)
Interior Depth - Drawer 112.0" (30 cm)
Interior Height - Drawer 28.0" (20 cm)
Interior Width - Drawer 220.5" (52 cm)
Interior Depth - Drawer 216.5" (42 cm)
Interior Height - Drawer 39.5" (24 cm)
Interior Width - Drawer 317.0" (43 cm)
Interior Depth - Drawer 312.75" (32 cm)
Interior Height - Drawer 49.0" (23 cm)
Interior Width - Drawer 417.0" (43 cm)
Interior Depth - Drawer 48.5" (22 cm)
Compressor Step Height10.0" (25 cm)
Compressor Step Width17.0" (43 cm)
Compressor Step Depth5.0" (13 cm)
Sound Level32.9 dB

Dimensions & Weight

Width23.5 in.
Height72.5 in.
Length23.25 in.
Weight135 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.5 in.
Shipping Height77.5 in.
Shipping Length28.25 in.
Shipping Weight175 lbs.
Total of Shipping Weight175 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement22.92 ft³
Dimensional Weight284.98 lbs.
Total of Cubes22.92 ft³
Total of Dimensional Weight284.98 lbs.

Overview Refrigerator-Freezer

Nominal Height73.0" (185 cm)
Height of Cabinet72.5" (184 cm)
Height to Hinge Cap73.0" (185 cm)
Nominal Width24.0" (61 cm)
Width23.5" (60 cm)
Nominal Depth24.0" (61 cm)
Depth23.25" (59 cm)
Depth with Handle25.75" (65 cm)
Depth with door at 90°44.63" (113 cm)
Capacity10.8 cu.ft. (306 L)
Defrost TypeFrost-Free/Automatic
DoorStainless Look
CabinetGray
US Electrical SafetyCSA
Canadian Electrical SafetyCSA-C
Energy Usage/Year391.0kWh/year
Amps1.3
Voltage/Frequency115 V AC/60 Hz
Weight135.0 lbs. (61 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101103563
Door SwingRHD
ReversibleYes
Adjustable ShelvesYes
Interior DrawersYes
Drawer Qty4
Crisper Qty2
Crisper FinishTransparent
Crisper CoverPlastic
Wine Bottle ShelvingYes
Interior LightYes
Refrigerator - Interior Height37.0" (94 cm)
Refrigerator - Interior Width20.5" (52 cm)
Refrigerator - Interior Depth17.75" (45 cm)
Refrigerator - Capacity7.35 cu.ft
Refrigerator - Shelf TypeGlass and Scalloped
Refrigerator - Shelf Qty3
Refrigerator - Full Door Shelves2
Freezer - Interior Height26.75" (68 cm)
Freezer - Interior Width17.0" (43 cm)
Freezer - Interior Depth14.0" (36 cm)
Freezer - Capacity3.43 cu.ft
Freezer - Shelf TypeDrawers
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount1.58 oz.
High Side PSI250.0
Low Side PSI88.0
Level Legs2
Interior Height - Drawer 15.5" (14 cm)
Interior Width - Drawer 120.5" (52 cm)
Interior Depth - Drawer 112.0" (30 cm)
Interior Height - Drawer 28.0" (20 cm)
Interior Width - Drawer 220.5" (52 cm)
Interior Depth - Drawer 216.5" (42 cm)
Interior Height - Drawer 39.5" (24 cm)
Interior Width - Drawer 317.0" (43 cm)
Interior Depth - Drawer 312.75" (32 cm)
Interior Height - Drawer 49.0" (23 cm)
Interior Width - Drawer 417.0" (43 cm)
Interior Depth - Drawer 48.5" (22 cm)
Compressor Step Height10.0" (25 cm)
Compressor Step Width17.0" (43 cm)
Compressor Step Depth5.0" (13 cm)
Sound Level32.9 dB
