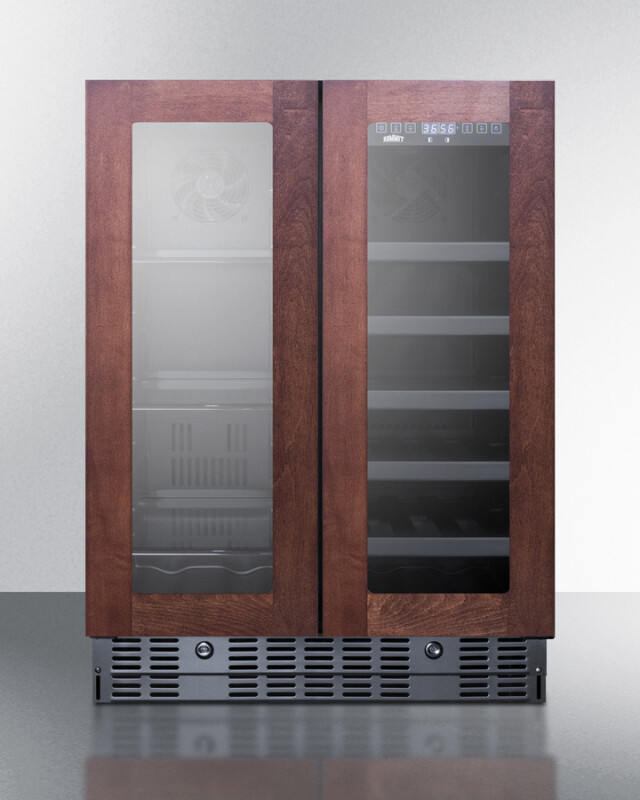

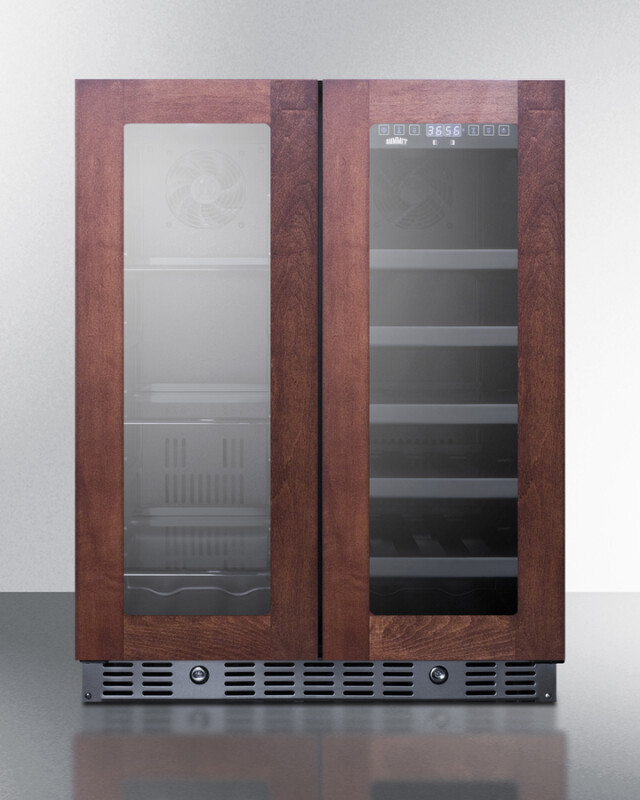

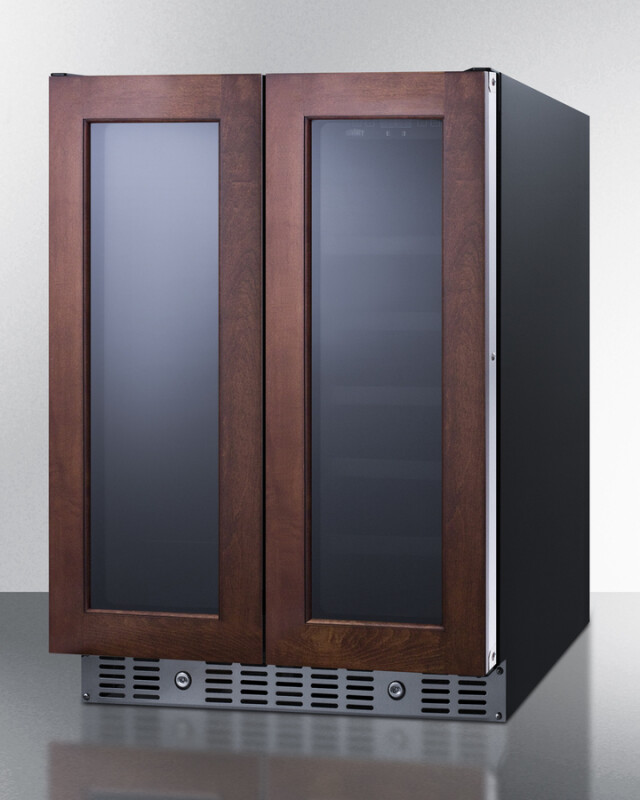

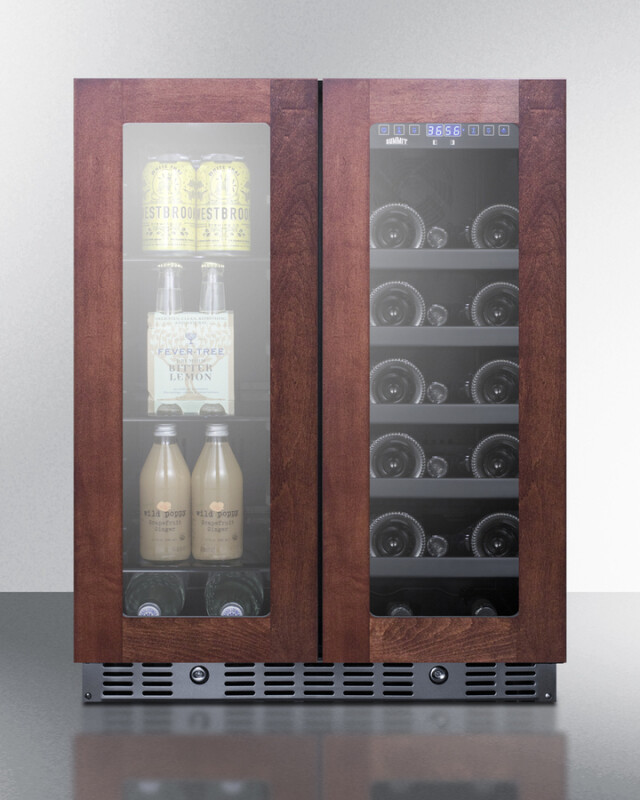

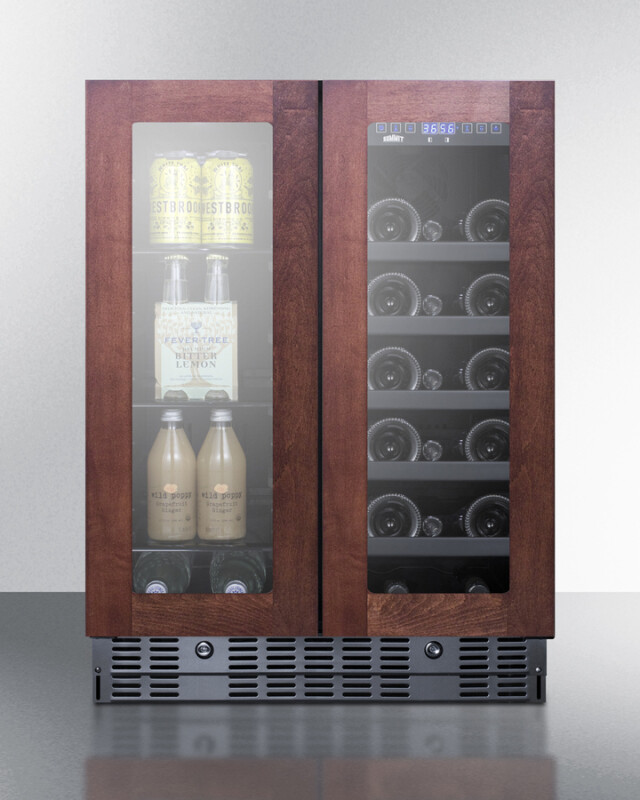

24" Built-In Wine/Beverage Center, ADA Compliant - ALFD24WBVPNR

24" Built-In Wine/Beverage Center, ADA Compliant

Model: ALFD24WBVPNR

24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
+1more

Color : Other

24" Built-In Wine/Beverage Center, ADA Compliant ALFD24WBVPNR
Other

Key Features

  • Built-in capable

  • Height adjustable

  • Panel-ready door trim

  • Digital thermostats

  • Two temperature zones

  • Factory installed locks

  • Adjustable wooden shelves

  • Adjustable glass shelves

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications
Certifications

Features

Built-in capable

Make the best use of space by installing your appliance under the counter

Height adjustable

Leveling legs can raise the unit to up to 33.5" for more standardized counters

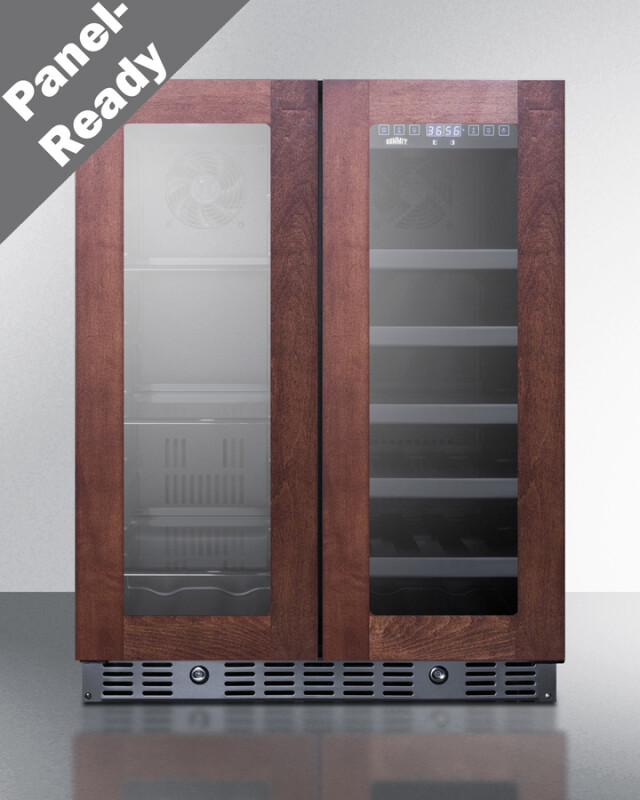

Panel-ready door trim

Door frames can be customized with an overlay panel to best match your own cabinetry style (panel size: 28 1/8" H x 11 3/16" W at 3/4" thick)

Digital thermostats

Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit

Two temperature zones

Independent zones let you store beverages in the left compartment and wine in the right

Factory installed locks

Each door includes a keyed lock for optional security

Adjustable wooden shelves

Wine zone includes size adjustable wooden shelves in a modern jet black finish

Adjustable glass shelves

Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone

LED lighting

Attractive and energy efficient LED lighting offers an elegant presentation

Automatic defrost

Reduced user maintenance with automatic defrost operation

Fan-forced cooling

Internal fans ensure both interiors are evenly cooled from top to bottom

French door swing

Two side-by-side doors with French door opening

Stainless steel kickplate

Completes the professional look down to the toe kick

High temperature alarm

Audibly alerts if the interior temperature rises out of the recommended wine storage range

Open door alarm

Audible alarm will sound if the doors are left ajar for over 60 seconds

Sabbath mode

Allows you to disable certain electrical functions for up to 48 hours for periods of observance

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle cord

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space saving design with easier cleanability

Integrated hinge

Door hinge adds no additional height, making it easier to install under a counter

Kickplate extender included

Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Overview

Height of Cabinet32.0" (81 cm)
Width23.38" (59 cm)
Depth22.75" (58 cm)
Depth with door at 90°33.0" (84 cm)
Capacity4.6 cu.ft. (130 L)
Bottles21 bottles
Defrost TypeAutomatic
DoorGlass/Panel-Ready Frame
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.0
Voltage/Frequency115 V AC/60 Hz
Weight105.0 lbs. (48 kg)
Shipping Weight140.0 lbs. (64 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101088051

Wine Cellar

Number of Zones2
Door SwingFrench
ReversibleNo
Height AdjustableYes
Adjustable ShelvesYes
Shelf TypeGlass and Wood
Shelf Qty8
Thermostat TypeDigital
Interior LightYes
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount1.06 oz.
High Side PSI270.0
Low Side PSI105.0
Interior Height 125.38" (64 cm)
Interior Width 18.38" (21 cm)
Interior Depth 117.5" (44 cm)
Compressor Step Height3.5" (9 cm)
Compressor Step Width8.38" (21 cm)
Compressor Step Depth5.0" (13 cm)
Level Legs4
Temperature RangeBeverage zone: 36 to 43°F; Wine zone: 41 to 72ºF
Interior Height 225.38" (64 cm)
Interior Width 28.38" (21 cm)
Interior Depth 217.5" (44 cm)

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width23.38 in.
Height32 in.
Length22.75 in.
Weight105 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.38 in.
Shipping Height37 in.
Shipping Length27.75 in.
Shipping Weight140 lbs.
Total of Shipping Weight140 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.85 ft³
Dimensional Weight122.45 lbs.
Total of Cubes9.85 ft³
Total of Dimensional Weight122.45 lbs.

Overview Wine Cellar

Height of Cabinet32.0" (81 cm)
Width23.38" (59 cm)
Depth22.75" (58 cm)
Depth with door at 90°33.0" (84 cm)
Capacity4.6 cu.ft. (130 L)
Bottles21 bottles
Defrost TypeAutomatic
DoorGlass/Panel-Ready Frame
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.0
Voltage/Frequency115 V AC/60 Hz
Weight105.0 lbs. (48 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101088051
Number of Zones2
Door SwingFrench
ReversibleNo
Height AdjustableYes
Adjustable ShelvesYes
Shelf TypeGlass and Wood
Shelf Qty8
Thermostat TypeDigital
Interior LightYes
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount1.06 oz.
High Side PSI270.0
Low Side PSI105.0
Interior Height 125.38" (64 cm)
Interior Width 18.38" (21 cm)
Interior Depth 117.5" (44 cm)
Compressor Step Height3.5" (9 cm)
Compressor Step Width8.38" (21 cm)
Compressor Step Depth5.0" (13 cm)
Level Legs4
Temperature RangeBeverage zone: 36 to 43°F; Wine zone: 41 to 72ºF
Interior Height 225.38" (64 cm)
Interior Width 28.38" (21 cm)
Interior Depth 217.5" (44 cm)
