30" Wide Built-In Outdoor Drawer Refrigerator - SDR301OS

This product has been discontinued by the manufacture and is no longer available.

30" Wide Built-In Outdoor Drawer Refrigerator

Model: SDR301OS

30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
+9more

Color : Black

30" Wide Built-In Outdoor Drawer Refrigerator SDR301OS
Black

Key Features

  • Weatherproof design for outdoor use

  • 30" wide single drawer refrigerator

  • Panel-ready drawer front

  • Commercially approved

  • Built-in capable

  • Digital thermostat

  • LED lighting

  • Frost-free operation

Read More

Description

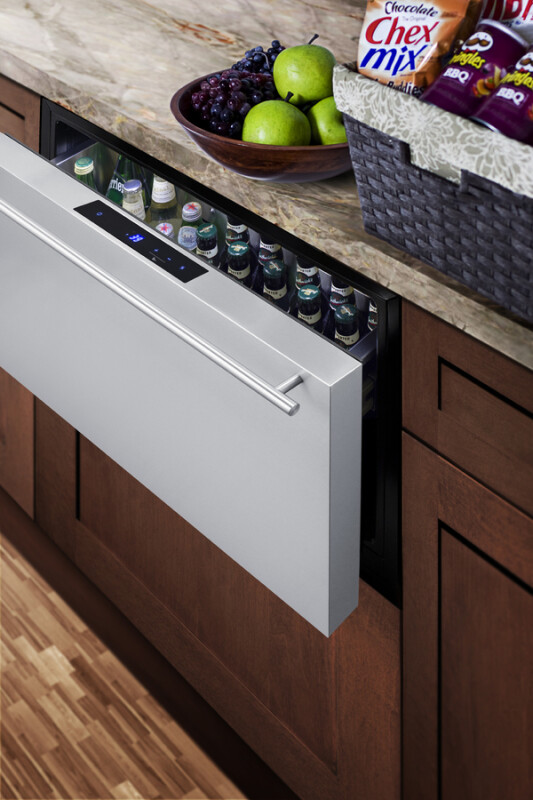

Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens. The SDR301OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 30" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness). Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen. Inside, the SDR301OS offers a full 2.5 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. With its fully-featured, weatherproof design, the SDR301OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Weatherproof design for outdoor use

Durable construction allows safe installation in outdoor kitchens

30" wide single drawer refrigerator

2.5 cu.ft. all-refrigerator in a single drawer style

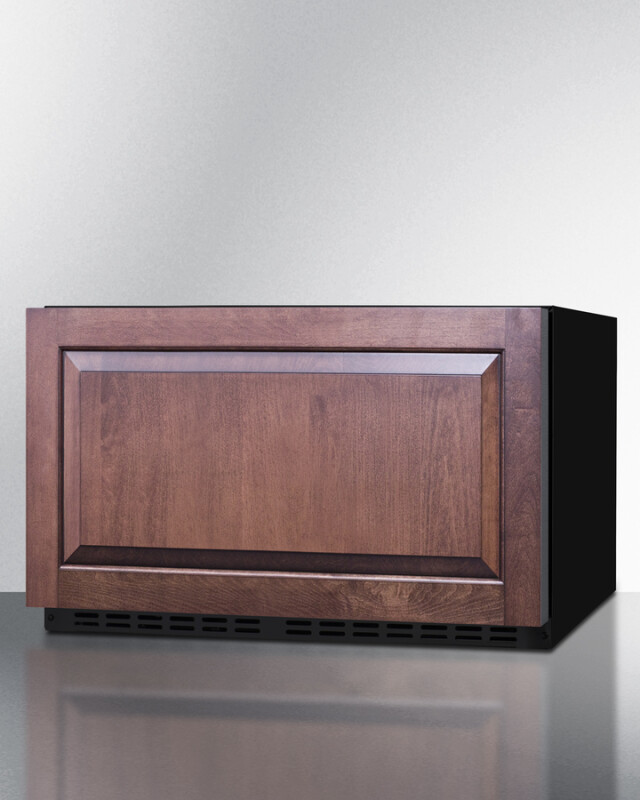

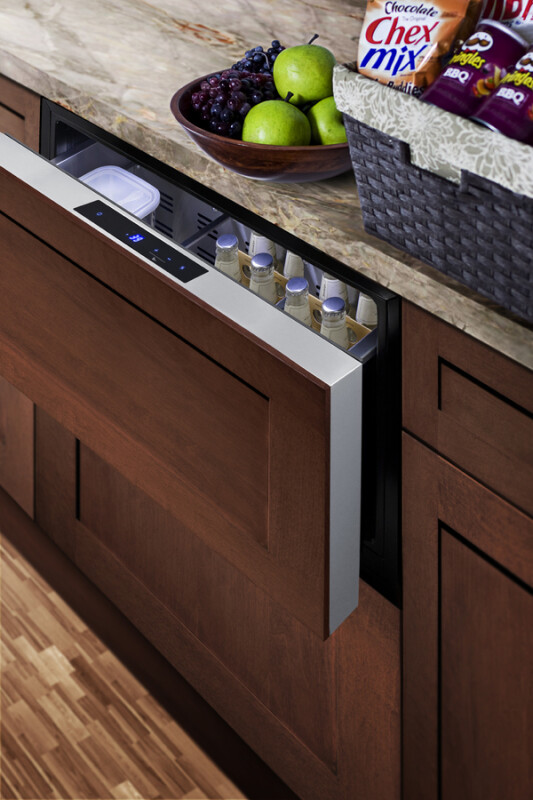

Panel-ready drawer front

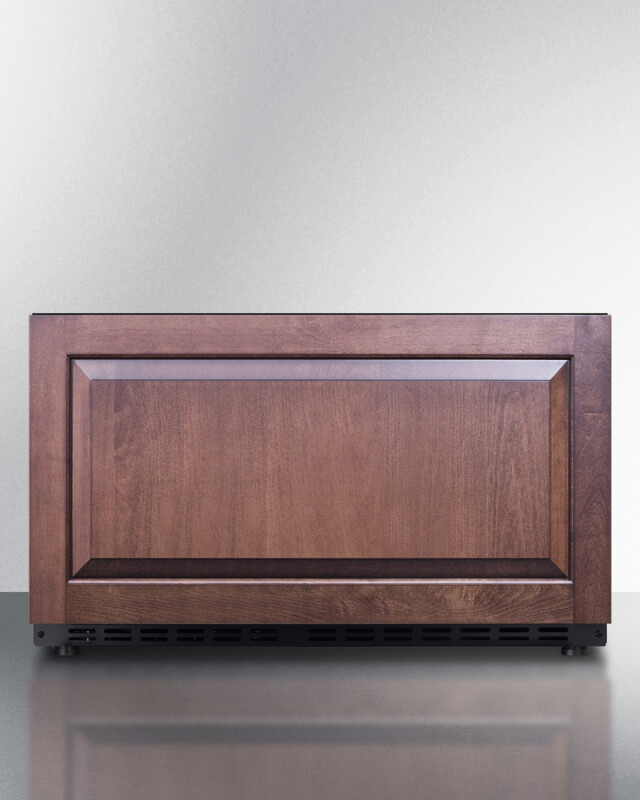

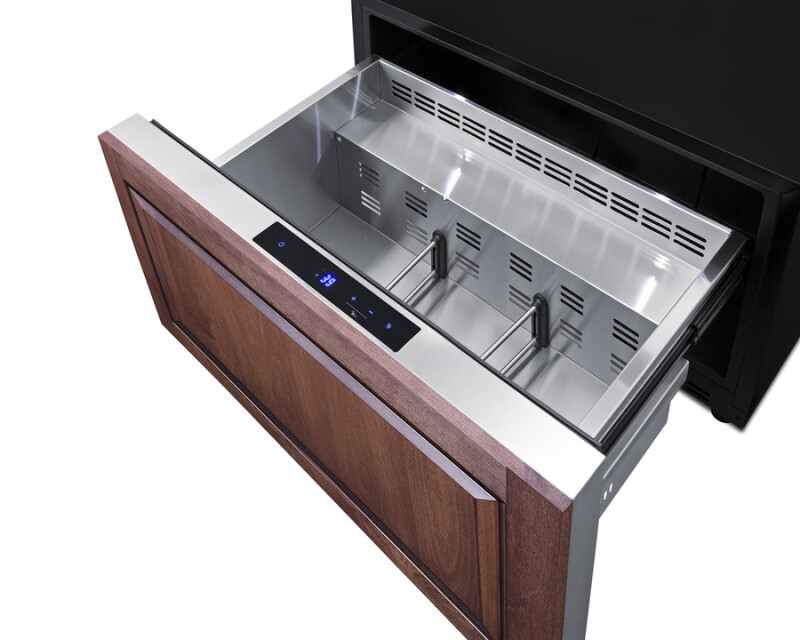

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 29.5" W at 3/4" maximum thickness)

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

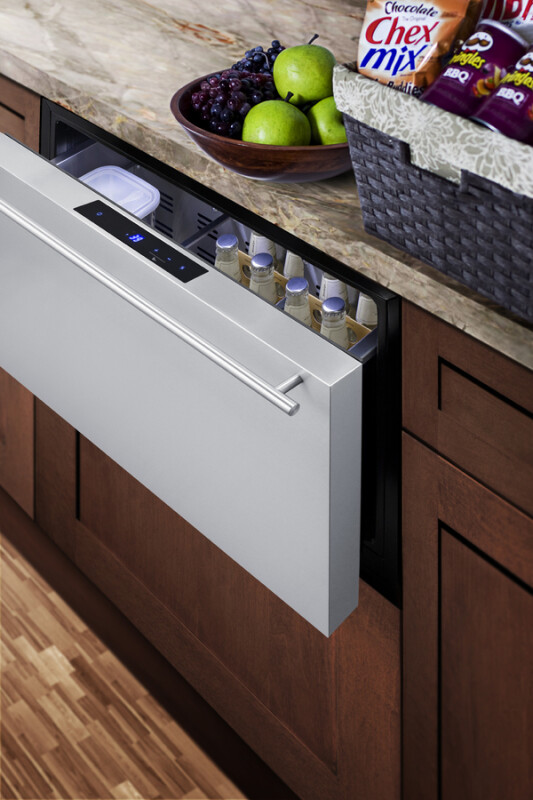

Built-in capable

Front-breathing design allows you to build the drawer into cabinetry

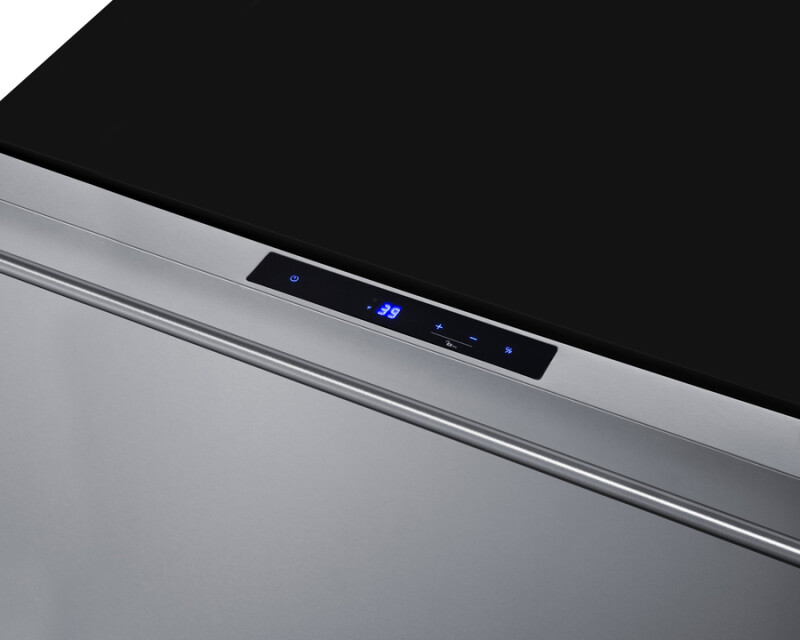

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

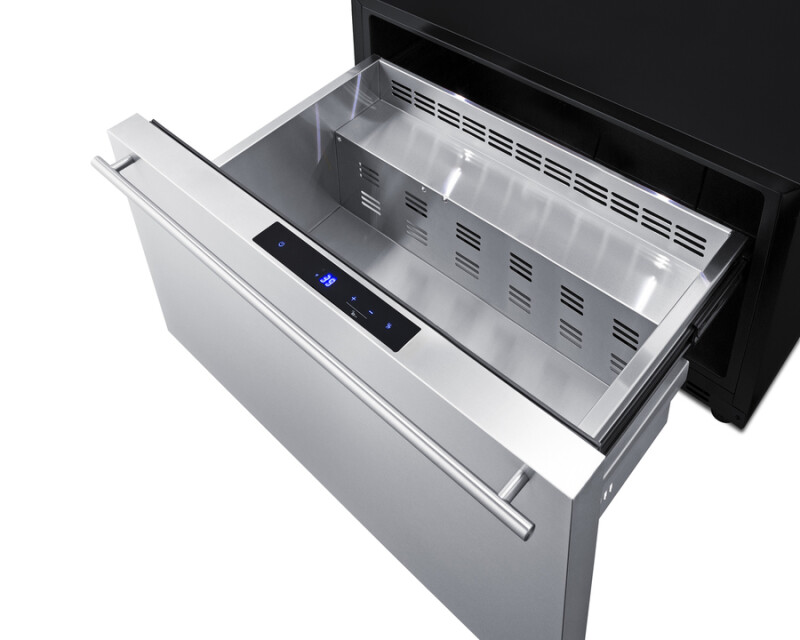

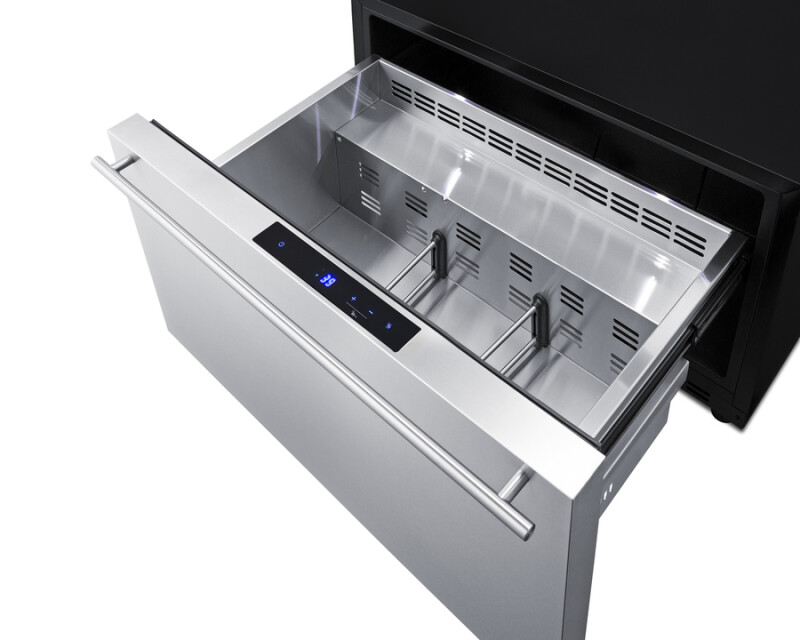

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

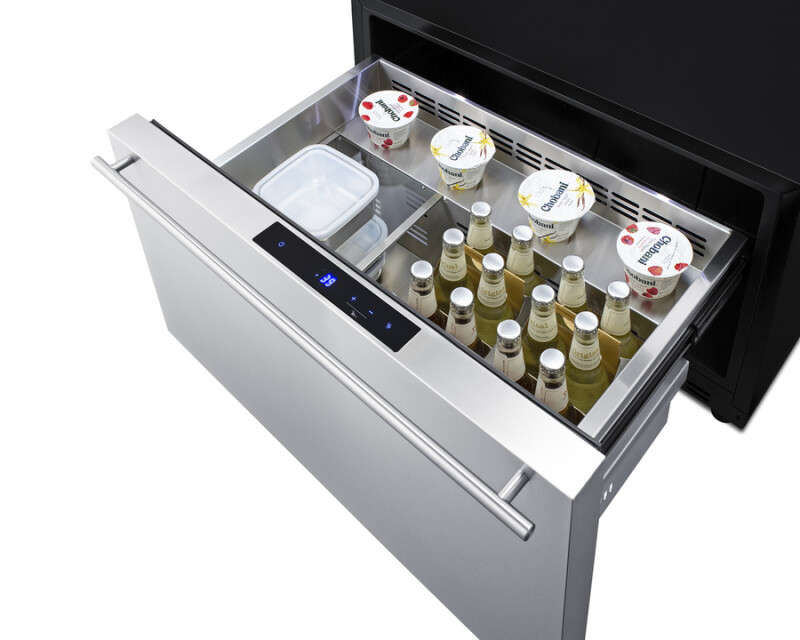

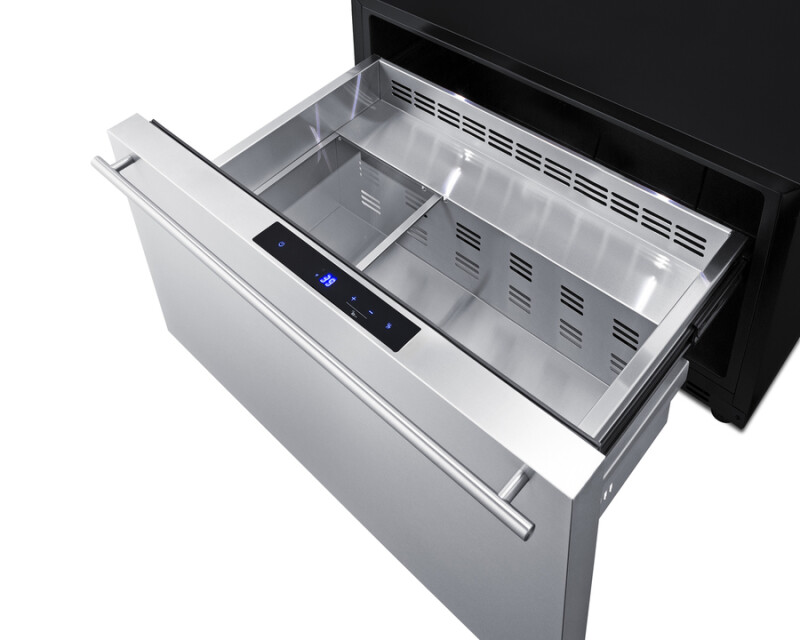

Drawer divider

Removable divider makes it easy to organize stored items

Internal fan

Fan-forced cooling ensures the unit is evenly cooled

Glass shelf

Includes one half-sized shelf that lets you create more separation as needed

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Child lock

Disables digital controls after two minutes of activity for added safety

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview

Nominal Height18.0" (46 cm)
Height of Cabinet17.75" (45 cm)
Nominal Width30.0" (76 cm)
Width29.5" (75 cm)
Nominal Depth22.0" (56 cm)
Depth22.0" (56 cm)
Depth with Handle23.5" (60 cm)
Depth with door at 90°37.88" (96 cm)
Capacity2.5 cu.ft. (71 L)
Defrost TypeFrost-Free
DoorStainless Steel/Panel-Ready
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Energy Usage/Year280.0kWh/year
Amps1.0
Voltage/Frequency115 V AC/60 Hz
Weight77.0 lbs. (35 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101088990

Refrigerator Features

Sabbath ModeYes
Door SwingDrawer
ReversibleNo
Shelf TypeGlass
Shelf Qty1
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.92oz.
High Side PSI270.0
Low Side PSI105.0
Level Legs Qty4
Interior LightYes
Temperature Range36 to 43ºF
Sound Level34.3 dB

Dimensions

Interior Height13.0" (33 cm)
Interior Width23.63" (60 cm)
Interior Depth15.5" (39 cm)
Compressor Step Height6.5" (17 cm)
Compressor Step Width23.63" (60 cm)
Compressor Step Depth4.5" (11 cm)

Dimensions & Weight

Width29.5 in.
Height17.75 in.
Length22 in.
Weight77 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.5 in.
Shipping Height22.75 in.
Shipping Length27 in.
Shipping Weight117 lbs.
Total of Shipping Weight117 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement6.67 ft³
Dimensional Weight82.88 lbs.
Total of Cubes6.67 ft³
Total of Dimensional Weight82.88 lbs.

Overview Refrigerator Features Dimensions

Nominal Height18.0" (46 cm)
Height of Cabinet17.75" (45 cm)
Nominal Width30.0" (76 cm)
Width29.5" (75 cm)
Nominal Depth22.0" (56 cm)
Depth22.0" (56 cm)
Depth with Handle23.5" (60 cm)
Depth with door at 90°37.88" (96 cm)
Capacity2.5 cu.ft. (71 L)
Defrost TypeFrost-Free
DoorStainless Steel/Panel-Ready
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Energy Usage/Year280.0kWh/year
Amps1.0
Voltage/Frequency115 V AC/60 Hz
Weight77.0 lbs. (35 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101088990
Sabbath ModeYes
Door SwingDrawer
ReversibleNo
Shelf TypeGlass
Shelf Qty1
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.92oz.
High Side PSI270.0
Low Side PSI105.0
Level Legs Qty4
Interior LightYes
Temperature Range36 to 43ºF
Sound Level34.3 dB
Interior Height13.0" (33 cm)
Interior Width23.63" (60 cm)
Interior Depth15.5" (39 cm)
Compressor Step Height6.5" (17 cm)
Compressor Step Width23.63" (60 cm)
Compressor Step Depth4.5" (11 cm)
