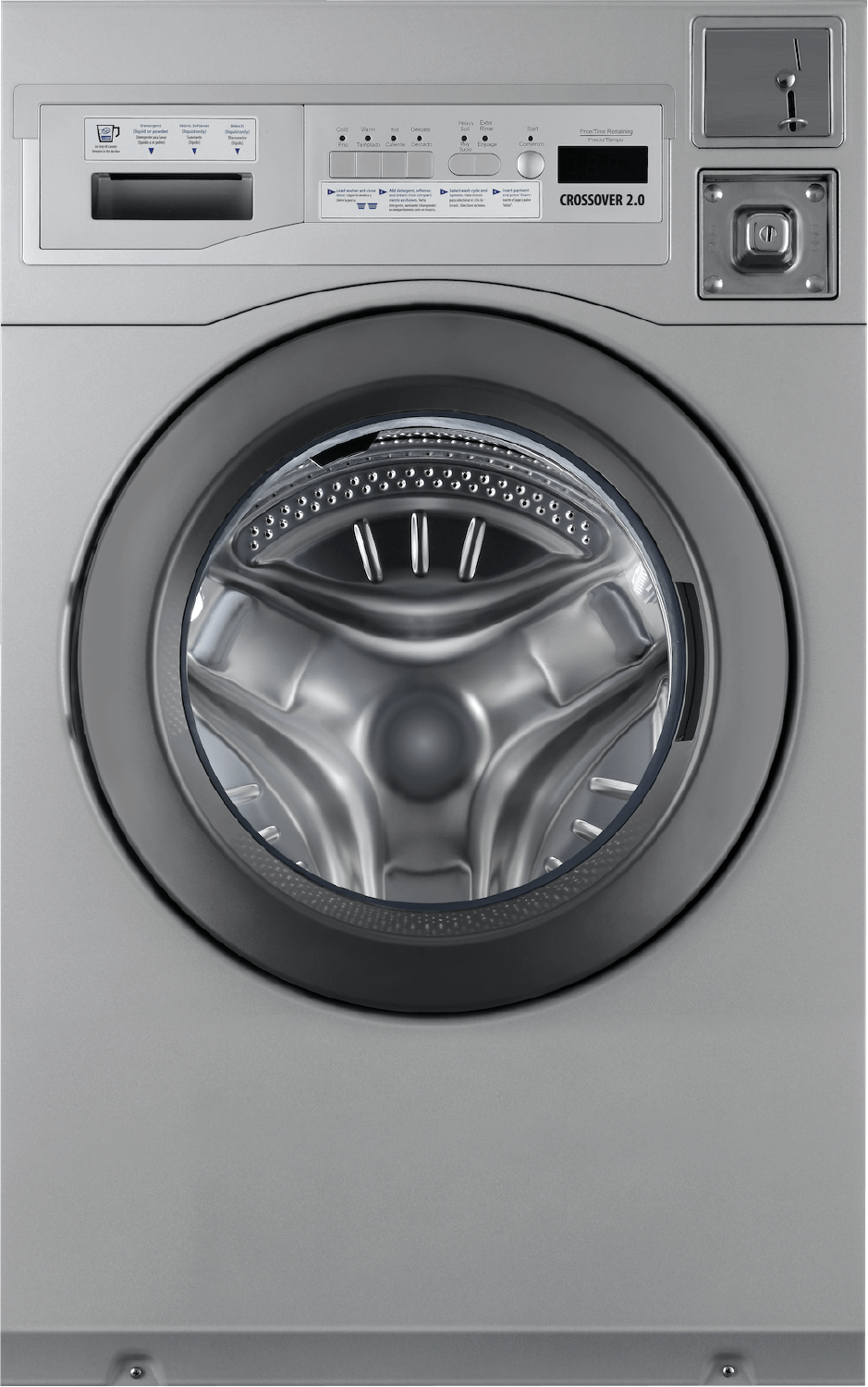

2.0 Washer Non-Metered - WHLFP817OPL

Crossover 2.0Crossover 2.0 brand logo

2.0 Washer Non-Metered

Model: WHLFP817OPL

2.0 Washer OPL, Non-Metered WHLFP817OPL2.0 Washer OPL, Non-Metered WHLFP817OPL2.0 Washer OPL, Non-Metered WHLFP817OPL
2.0 Washer OPL, Non-Metered WHLFP817OPL
2.0 Washer OPL, Non-Metered WHLFP817OPL
2.0 Washer OPL, Non-Metered WHLFP817OPL

Color : Other

product image
Other

Key Features

  • Real-time clock for happy hour, promotional pricing

  • Extra large load drum — 22+ pound capacity

  • Top quality SKF bearings in a heavy duty cast iron housing

  • 15,000+ cycle machine life design (tested at full load)

  • 300 G-force for greatest spin moisture reduction and faster dry time

  • ADA Compliant

  • Superb cleanability with 4 field adjustable wash programs

  • Superior over-suds and unbalance tolerance

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Real-time clock for happy hour, promotional pricing

Extra large load drum — 22+ pound capacity

Top quality SKF bearings in a heavy duty cast iron housing

15,000+ cycle machine life design (tested at full load)

300 G-force for greatest spin moisture reduction and faster dry time

ADA Compliant

Superb cleanability with 4 field adjustable wash programs

Superior over-suds and unbalance tolerance

Front access for easy serviceability

AC motor (no brushes)

Solid steel counterweights — no concrete

2 cycle upgrade buttons enhance revenue

Professional 8-point suspension

Soft mount design for easy installation

Saves up to 60% on water vs. top load washers

Quiet operation

Energy Star Certified

3 seals with 5 lips protect bearings

Pump drain standard

Specifications

Warranty

Parts3 Year

Other

MODEL NO.Metered (Coin)/Card-ready, Pump Model WHLFP817M / WHLFP817DC
MOTORVariable-speed, reversible, thermoprotected, high-efficiency, controlled induction
CYLINDER DIAMETER21 5/8 in (550 mm)
ELECTRICAL RATING120 V/60 Hz/1-phase
BREAKER REQUIREMENTS15A
CYLINDER VOLUME3.5 cu ft (98 liters)
WASH CAPACITY22 lbs (10 kg)
DOOR OPENING15 in (380 mm)
WASH SPEED45 RPM
MAXIMUM RPM*1,050 RPM
MAXIMUM G-FORCE*300 G
INLET HOSE2 3/8 in (hoses included)
WATER PRESSURE15-90 psi (100-600 kPa)
DRAIN HOSE1 in (25.4 mm)
WASH CAPACITY22 lb / 10 kg
CYLINDER VOLUME3.5 cu ft / 98 liters

Dimensions & Weight

Width27 in.
Height43.25 in.
Length30.13 in.
Weight-
CYLINDER DEPTH18 1/4 in (464 mm)
UNCRATED WEIGHT299 lbs (136 kg)
CRATED WEIGHT314 lbs (142 kg)
HEIGHT TO CENTER OF DOOR23 in (584 mm)
HEIGHT TO BOTTOM OF DOOR12 3/16 in (310 mm)
DEPTH W/ DOOR OPEN 90º51 3/16 in (1300 mm)

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width32 in.
Shipping Height48.25 in.
Shipping Length35.13 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement20.36 ft³
Dimensional Weight253.08 lbs.
Total of Cubes20.36 ft³
Total of Dimensional Weight253.08 lbs.
