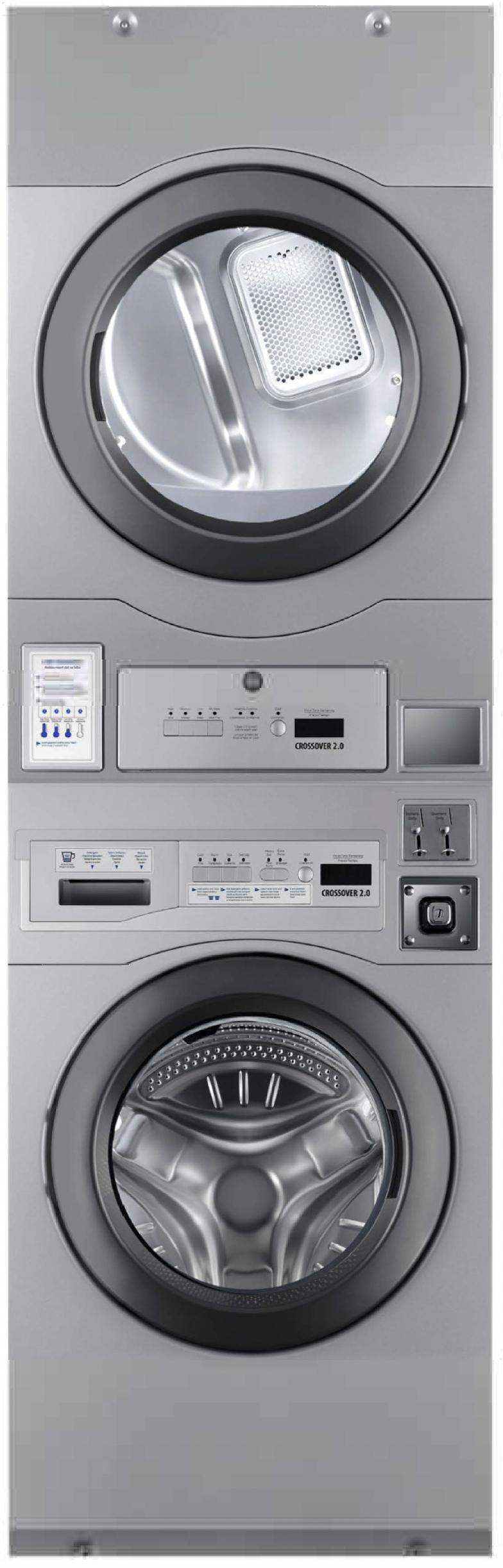

2.0 Stacked Washer Dryer Card-ready - WDHLPS817EDC
Color : Other
Key Features
Superb clean-ability with 4 field adjustable wash programs
Real-time clock for happy hour, promotional pricing

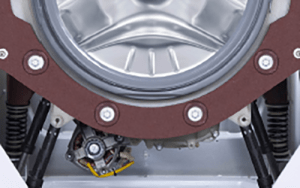

Top quality SKF bearings in a heavy duty cast iron housing
Extra large load drum — 22+ pound capacity
Front access for easy serviceability
15,000+ cycle machine life design (tested at full load)
Professional 8-point suspension and Pump drain standard
Superior over-suds and unbalance tolerance
Documents
Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.
Features
Superb clean-ability with 4 field adjustable wash programs
Real-time clock for happy hour, promotional pricing
Top quality SKF bearings in a heavy duty cast iron housing
Extra large load drum — 22+ pound capacity
Front access for easy serviceability
15,000+ cycle machine life design (tested at full load)
Professional 8-point suspension and Pump drain standard
Superior over-suds and unbalance tolerance
Axial airflow ensures the shortest drying time
Solid steel counterweights — no concrete
2 cycle upgrade buttons enhance revenue
Saves up to 60% on water vs. top load washers
Space-saving and Soft-mount design for easy installation
Roller supported tumbler
Easy to clean, heavy duty lint screen
ENERGY STAR Certified
3 seals with 5 lips protect bearings
300 G-force for greatest spin moisture reduction and faster dry time
AC motor (no brushes)
Specifications
Warranty
| Parts | 3 Year |
| Labor | 3 Year |
Other
| MODEL NO. ELECTRIC | Metered (Coin) / Card-ready – Pump Model WDHLPS817E / WDHLPS817EDC |
| WASHER CYLINDER VOLUME | 3.5 cu ft (98 liters) |
| MOTOR | Variable-speed, reversible, thermoprotected, high-efficiency, controlled induction |
| ELECTRICAL RATING (GAS MODEL) | 120 V/60 Hz / 1-phase |
| BREAKER FUSE REQUIREMENTS (ELECTRIC HEAT) | 30A |
| DRYER CYLINDER VOLUME | 7.0 cu ft (200 liters) |
| WASHER CYLINDER DIAMETER | 21 5/8 in (550 mm) |
| GAS HEATING | 18,000 BTU/hr |
| ELECTRIC HEATING | 5.0 kW |
| GAS CONNECTION | 3/8 in MNPT |
| WASH/DRY CAPACITY | 22 lbs (10 kg) |
| AIRFLOW | 170 cfm |
| WASH SPEED | 45 RPM |
| TUMBLING SPEED | 50 rpm |
| EXHAUST CONNECTION | 4 in diameter |
| DRY CAPACITY | 22 lb / 10 kg |
| CYLINDER VOLUME | 7.0 cu ft / 200 liters |
Dimensions & Weight
| Width | 27 in. |
| Height | 85 in. |
| Length | 29 in. |
| Weight | - |
| WASHER CYLINDER DEPTH | 18 1/4 in (464 mm) |
| DRYER CYLINDER DEPTH | 22 in (559 mm) |
| APPROX. NET WEIGHT | Dryer - 158 lbs (71.7 kg) Washer - 299 lbs (136 kg) |
| HEIGHT TO BOTTOM OF DOOR | N/A |
| HEIGHT TO CENTER OF DOOR | N/A |
| DEPTH W/ DOOR OPEN 90º | N/A |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 90 in. |
| Shipping Length | 34 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 38.52 ft³ |
| Dimensional Weight | 478.81 lbs. |
| Total of Cubes | 38.52 ft³ |
| Total of Dimensional Weight | 478.81 lbs. |
