Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC - 174F

Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC

Model: 174F

Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174FProject Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174FProject Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174FProject Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174FProject Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174FProject Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
Project Pack Finish Unit, 750/1500W 120VAC, 1125W 208VAC, 1500W 240VAC 174F
+1more

Color : White

product image
White

Key Features

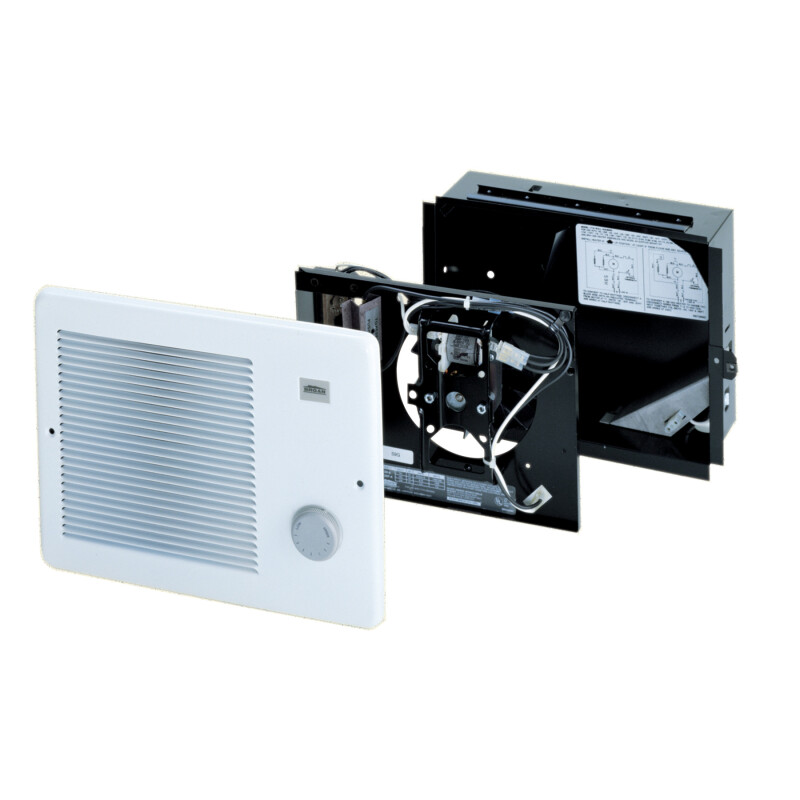

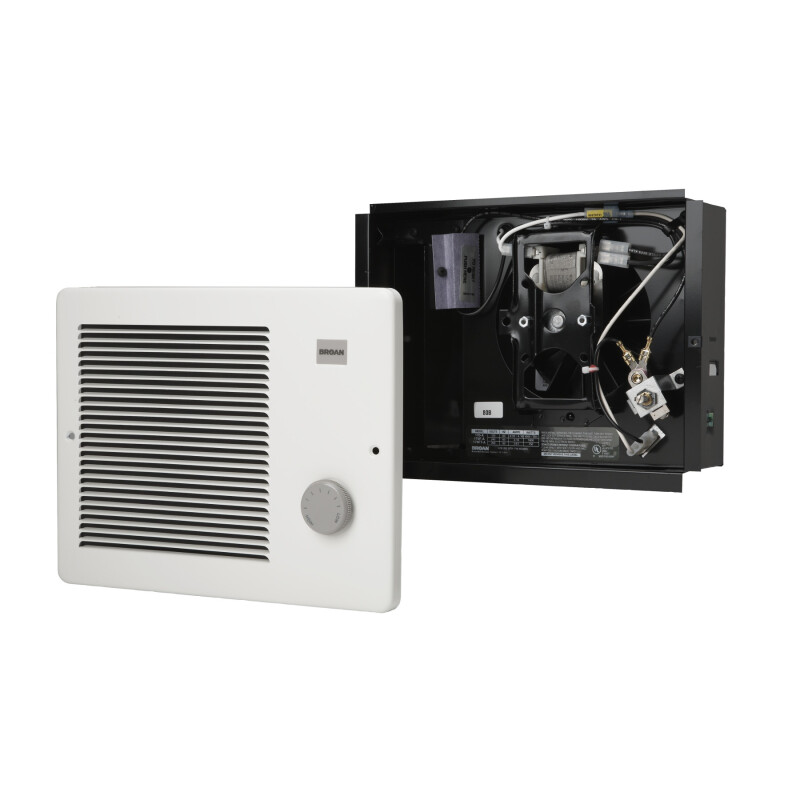

  • Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.

  • White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability

  • Adjustable, front-mounted thermostat offers a simple way to control the level of heat

  • Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds

  • Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)

  • Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.

  • Factory wired at 1,500W, at 120V AC, it can be easily converted to 750W at 120v AC or 1,500W at 240V AC for added versatility.

  • Can be operated using the Broan Integral Thermostat (Model 83) or timer (Models 59V, 59W, 61V or 61W) for a simple and convenient way to control the heater

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Finish kits are sold in single-pack quantities and are used in conjunction with a 171H Rough-In Housing Kit - sold separately.

White grille has downflow louvers to direct heat gently toward the floor and a one-piece design with baked enamel finish for durability

Adjustable, front-mounted thermostat offers a simple way to control the level of heat

Rapid warm up time due to an efficient Alloy heating element that provides comforting heat in seconds

Heater may be recessed or surface-mounted, depending on your application (surface mounting requires Model 84 surface mount kit sold separately)

Permanently lubricated motor, high efficiency blower wheel, Nickel-chrome alloy heating element and a manual reset thermal overload protector combine to ensure reliable operation and years of trouble free heating. UL Listed for safety.

Factory wired at 1,500W, at 120V AC, it can be easily converted to 750W at 120v AC or 1,500W at 240V AC for added versatility.

Can be operated using the Broan Integral Thermostat (Model 83) or timer (Models 59V, 59W, 61V or 61W) for a simple and convenient way to control the heater

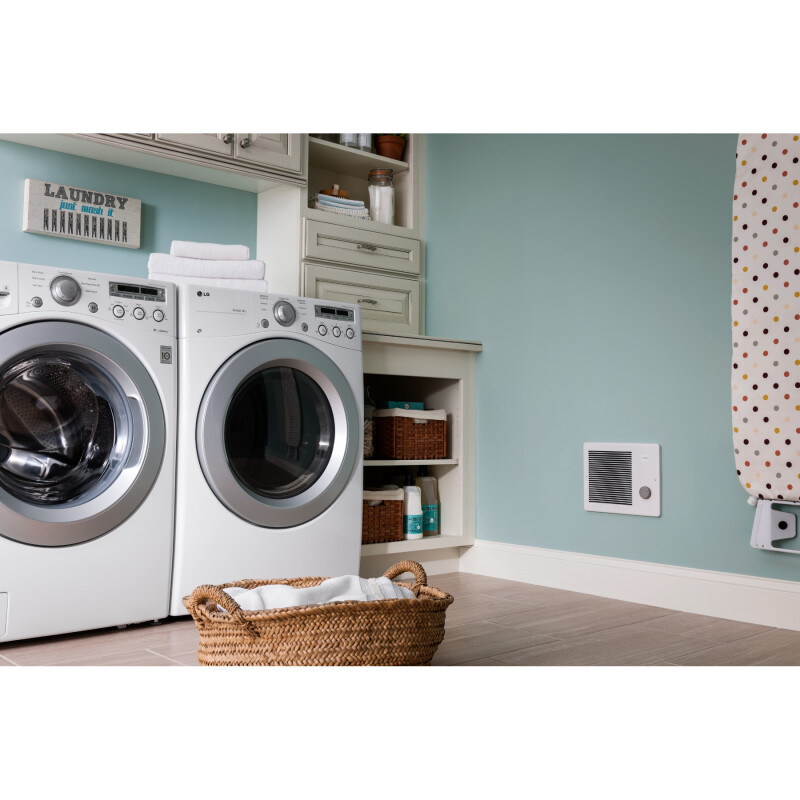

Wall heaters are intended to provide supplemental heat from a wall location and not to take the place of the home's main heat source

Specifications

Product Details

Auto Shut-offYes
cUL ListedNo
Heater TypeHousing Project Pack
Number Of Heat SettingsOn-Off
Project PackNo
ThermostatNo
UL ListedNo
Coverage Area (sq ft)100-150
BTU/hr at 120 Volts5120
BTU/hr at 208 Volts3840
BTU/hr at 240 Volts5120

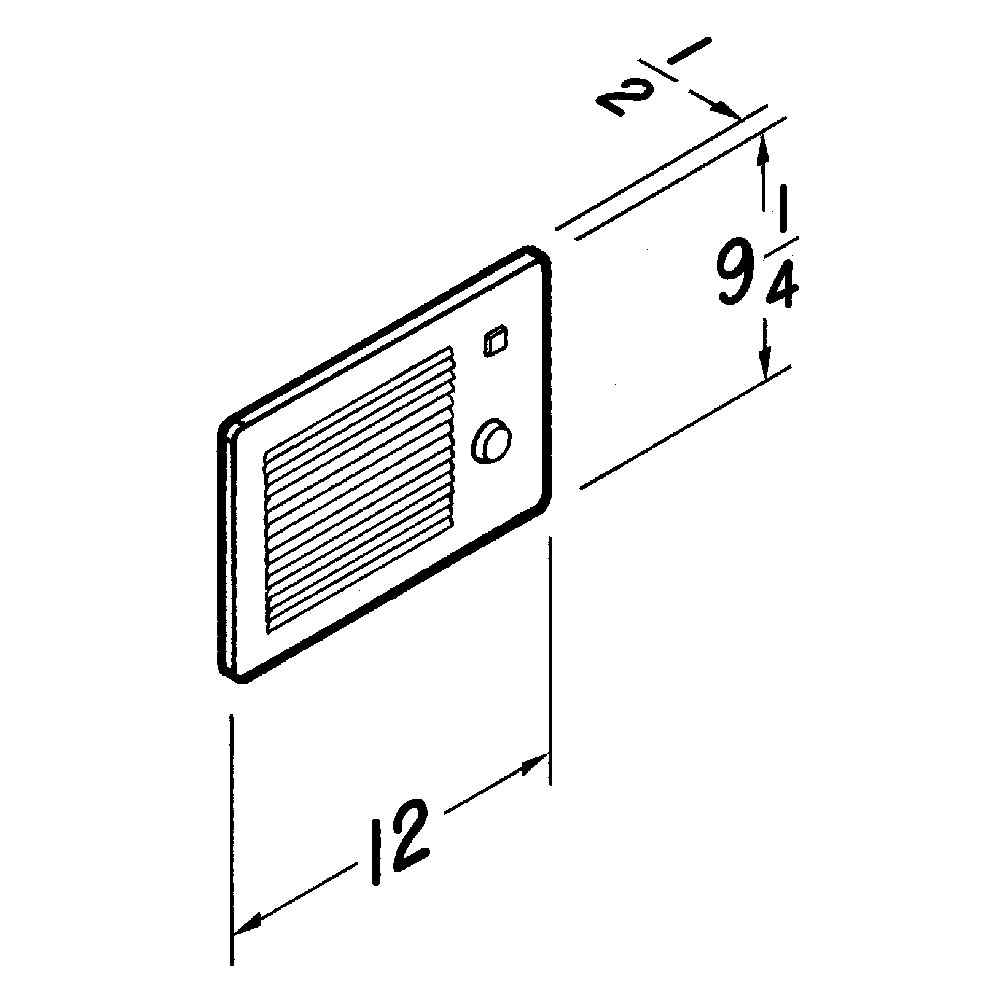

Grille Dimensions - Width12

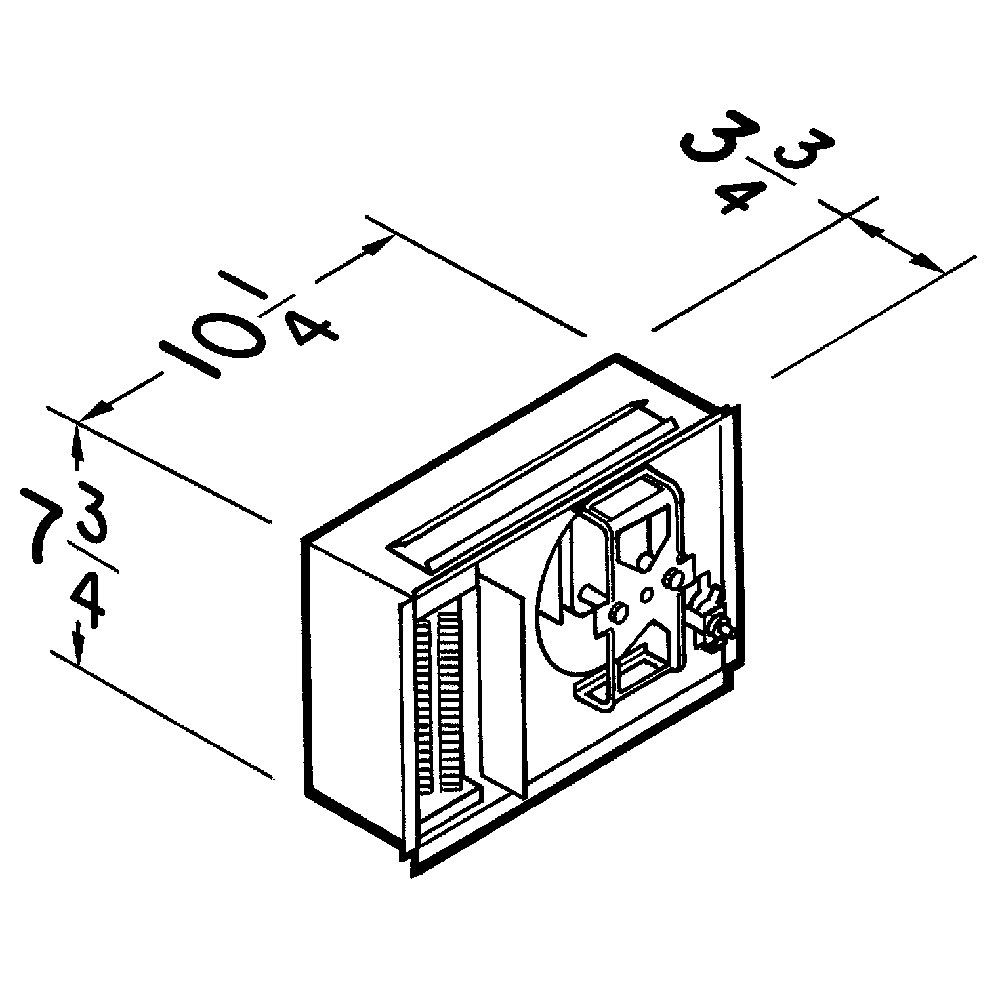

Housing Length/Depth3.75
Watts And Amps At 120 Volts12.5
Watts And Amps At 208 Volts5.41
Watts And Amps At 240 Volts6.25
Watts at 120 VAC1500
Watts at 208 VAC1125
Watts at 240 VAC1500
Manufacturer Warranty1 Year

Dimensions & Weight

Width12 in.
Height-
Length3.75 in.
Weight-

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width17 in.
Shipping Height-
Shipping Length8.75 in.
Shipping Weight-
Total of Shipping Weight-
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-
