24" Under Cabinet Convertible Range Hood, ADA Compliant - HC24WWADA
This product has been discontinued by the manufacture and is no longer available.

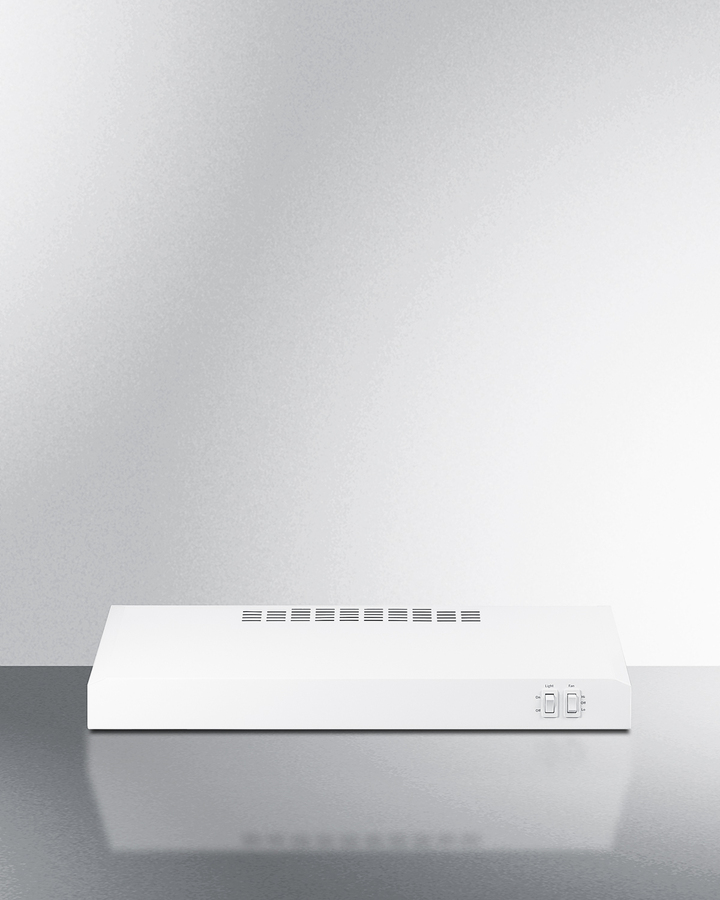

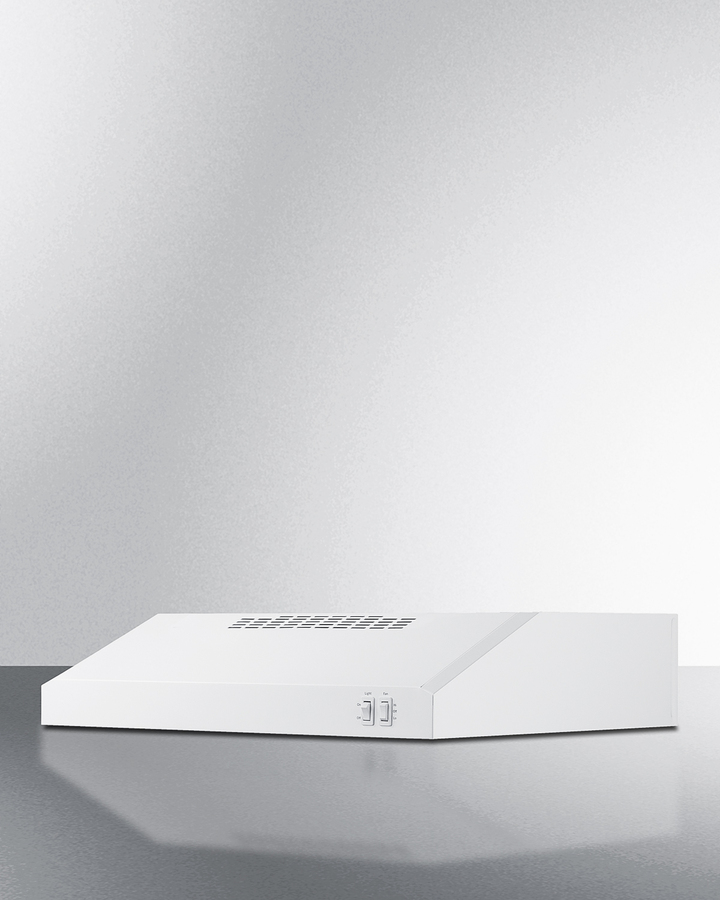

24" Under Cabinet Convertible Range Hood, ADA Compliant
Model: HC24WWADA













+3more
This product has been discontinued by the manufacture and is no longer available.
24" Under Cabinet Convertible Range Hood, ADA Compliant
Model: HC24WWADA
Description

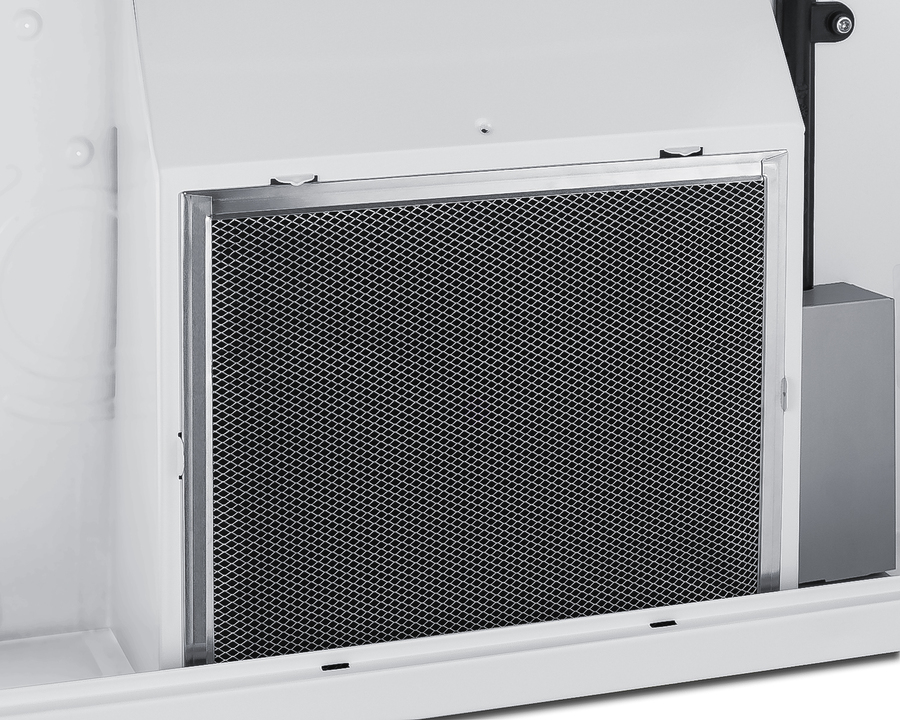

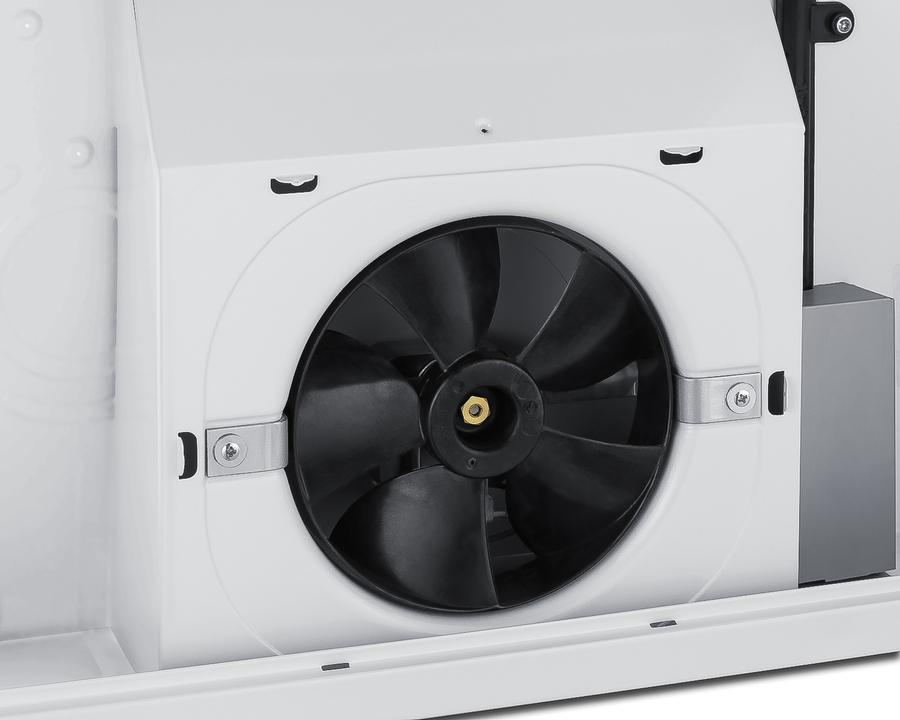

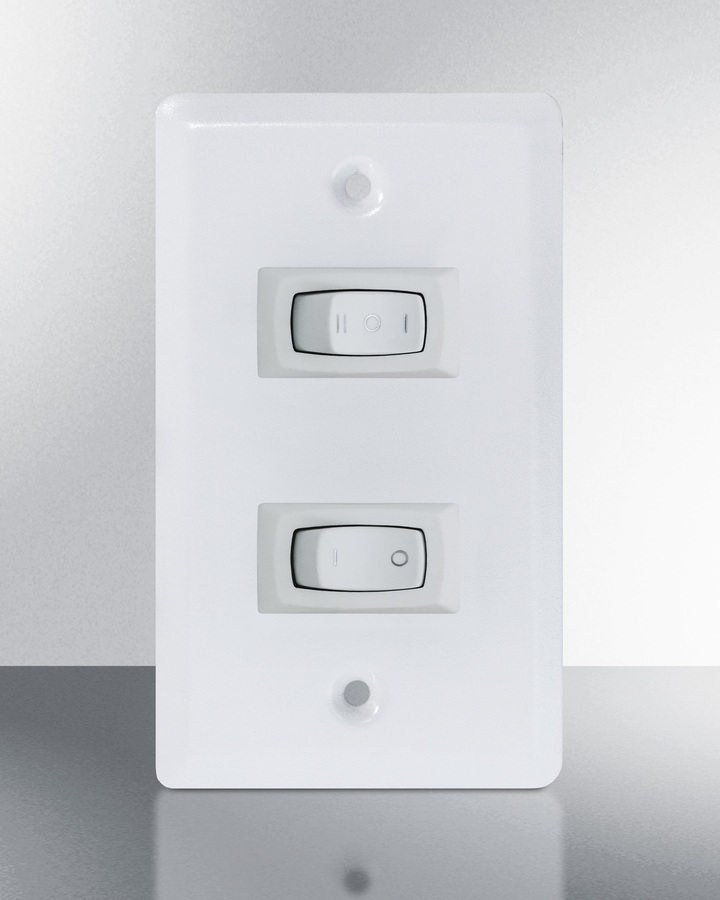

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC24WWADA is a 24" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a classic white finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
Read MoreAvailable from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.
Specifications
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview Range Hood
| Nominal Height | 6.0" (15 cm) |
| Height of Cabinet | 5.5" (14 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.88" (61 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 12.0 lbs. (5 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101107219 |
| Installation | Under Cabinet |
| Venting | Convertible |
| Controls | Dial |
| Number of Fan Speeds | 2 |
| Maximum Air Movement | 270.0 CFM |
| Sone Rating | 6 |
| Duct Shape | 3"1/4" x 10" rectangular or 6/7" round with transition |
