24" Under Cabinet Convertible Range Hood, ADA Compliant - HC24BBADA

This product has been discontinued by the manufacture and is no longer available.

24" Under Cabinet Convertible Range Hood, ADA Compliant

Model: HC24BBADA

24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
+3more

Color : Black

24" Under Cabinet Convertible Range Hood, ADA Compliant HC24BBADA
Black

Description

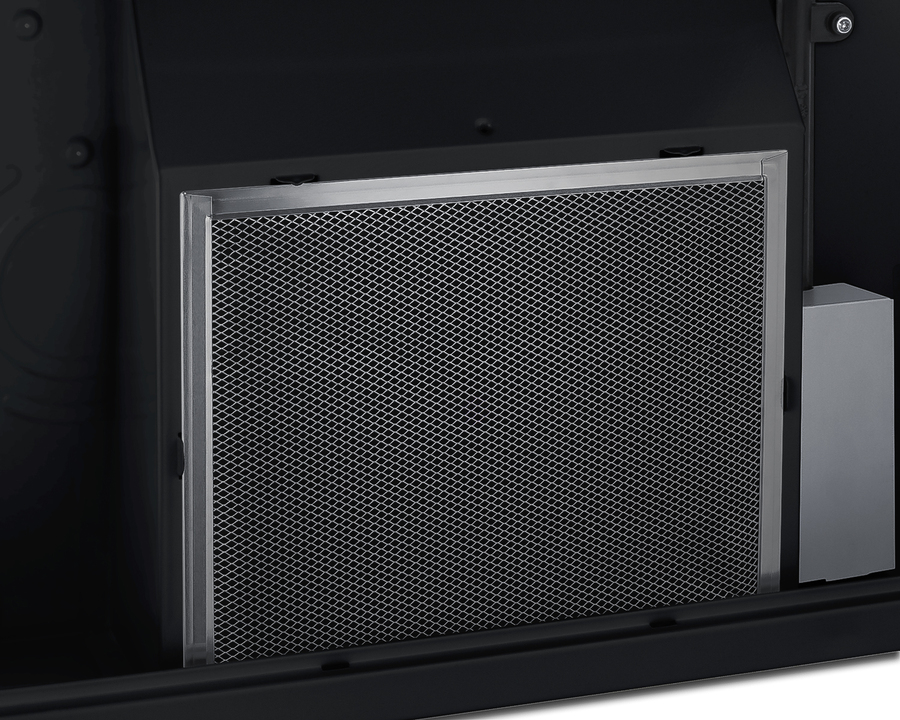

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC24BBADA is a 24" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Specifications

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview Range Hood

Nominal Height6.0" (15 cm)
Height of Cabinet5.5" (14 cm)
Nominal Width24.0" (61 cm)
Width23.88" (61 cm)
Nominal Depth20.0" (51 cm)
Depth20.0" (51 cm)
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.7
Voltage/Frequency115 V AC/60 Hz
Weight12.0 lbs. (5 kg)
Parts & Labor Warranty1 Year
UPC761101107226
InstallationUnder Cabinet
VentingConvertible
ControlsDial
Number of Fan Speeds2
Maximum Air Movement270.0 CFM
Sone Rating6
Duct Shape3"1/4" x 10" rectangular or 6/7" round with transition
