20" Under Cabinet Convertible Range Hood, ADA Compliant - HC20BBADA

This product has been discontinued by the manufacture and is no longer available.

20" Under Cabinet Convertible Range Hood, ADA Compliant

Model: HC20BBADA

20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
+3more

Color : Black

20" Under Cabinet Convertible Range Hood, ADA Compliant HC20BBADA
Black

Key Features

  • 20" Wide ADA Compliant Range Hood

  • ADA compliant design

  • Under cabinet range hood

  • 20 inch width

  • Convertible design

  • Powerful ventilation

  • Black finish

  • Versatile top or rear exhaust

Read More

Description

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC20BBADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

20" Wide ADA Compliant Range Hood

Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines

ADA compliant design

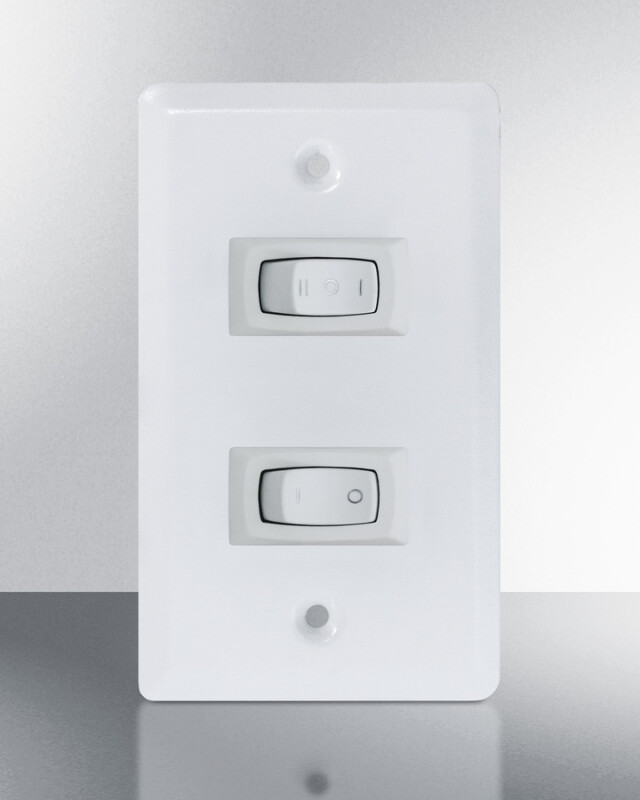

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Under cabinet range hood

Low profile design offers classic style to finish your kitchen

20 inch width

Sized for use over 20 inch cooking surfaces (additional sizes available)

Convertible design

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Powerful ventilation

Can operate at 270 CFM to ensure thorough ventilation of your cooking surface

Black finish

Matte finish in jet black suits any kitchen space

Versatile top or rear exhaust

Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)

Easy conversion

Ships pre-set for recirculating mode but can be converted in a few simple steps

Angled airflow

Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

Durable 21 gauge steel construction

Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods

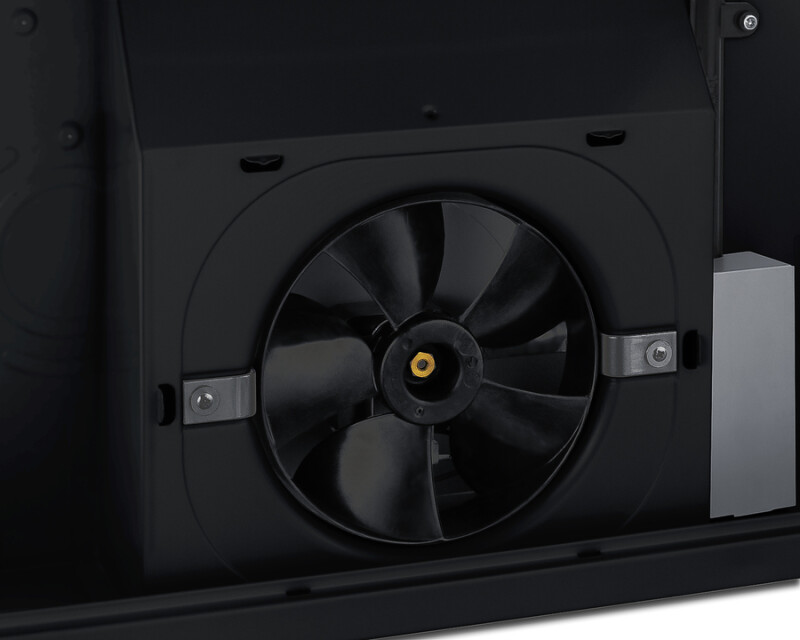

Two-speed fan

High and low setting to allow proper ventilation of your kitchen as needed

Accepts a standard bulb

Designed to hold a standard incandescent light bulb with easy installation and no tools required

Removable filter

Snap-in design allows you to easily remove the filter for fast replacing as needed

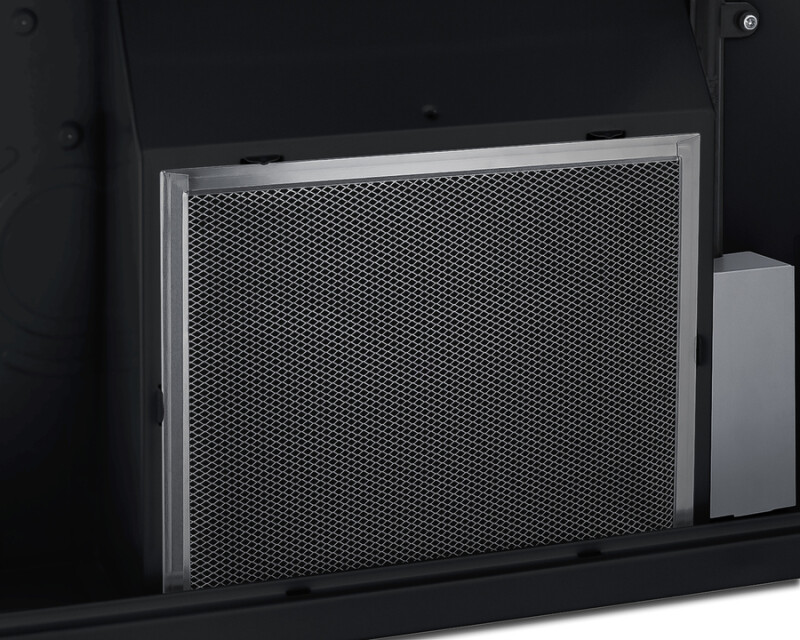

Combination charcoal/aluminum mesh filter

Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience

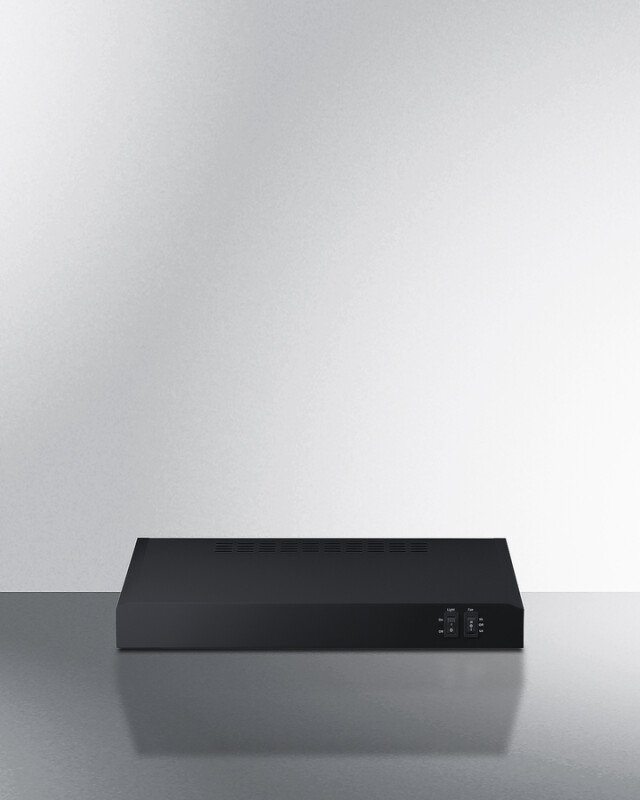

Rocker switch controls

Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation

Designed to be hard-wired by a licensed professional

Made in North America

TAA compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview

Nominal Height6.0" (15 cm)
Height of Cabinet5.5" (14 cm)
Nominal Width20.0" (51 cm)
Width20.0" (51 cm)
Nominal Depth20.0" (51 cm)
Depth20.0" (51 cm)
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.7
Voltage/Frequency115 V AC/60 Hz
Weight11.0 lbs. (5 kg)
Parts & Labor Warranty1 Year
UPC761101107196

Range Hood

InstallationUnder Cabinet
VentingConvertible
Number of Fan Speeds2
Maximum Air Movement270.0 CFM
Sone Rating6
Duct Shape3"1/4" x 10" rectangular or 7" round

Dimensions & Weight

Width20 in.
Height5.5 in.
Length20 in.
Weight11 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width25 in.
Shipping Height10.5 in.
Shipping Length25 in.
Shipping Weight51 lbs.
Total of Shipping Weight51 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.27 ft³
Dimensional Weight15.83 lbs.
Total of Cubes1.27 ft³
Total of Dimensional Weight15.83 lbs.

Overview Range Hood

Nominal Height6.0" (15 cm)
Height of Cabinet5.5" (14 cm)
Nominal Width20.0" (51 cm)
Width20.0" (51 cm)
Nominal Depth20.0" (51 cm)
Depth20.0" (51 cm)
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.7
Voltage/Frequency115 V AC/60 Hz
Weight11.0 lbs. (5 kg)
Parts & Labor Warranty1 Year
UPC761101107196
InstallationUnder Cabinet
VentingConvertible
Number of Fan Speeds2
Maximum Air Movement270.0 CFM
Sone Rating6
Duct Shape3"1/4" x 10" rectangular or 7" round
