30" Under Cabinet Ductless Range Hood, ADA Compliant - ADAH1730B

This product has been discontinued by the manufacture and is no longer available.

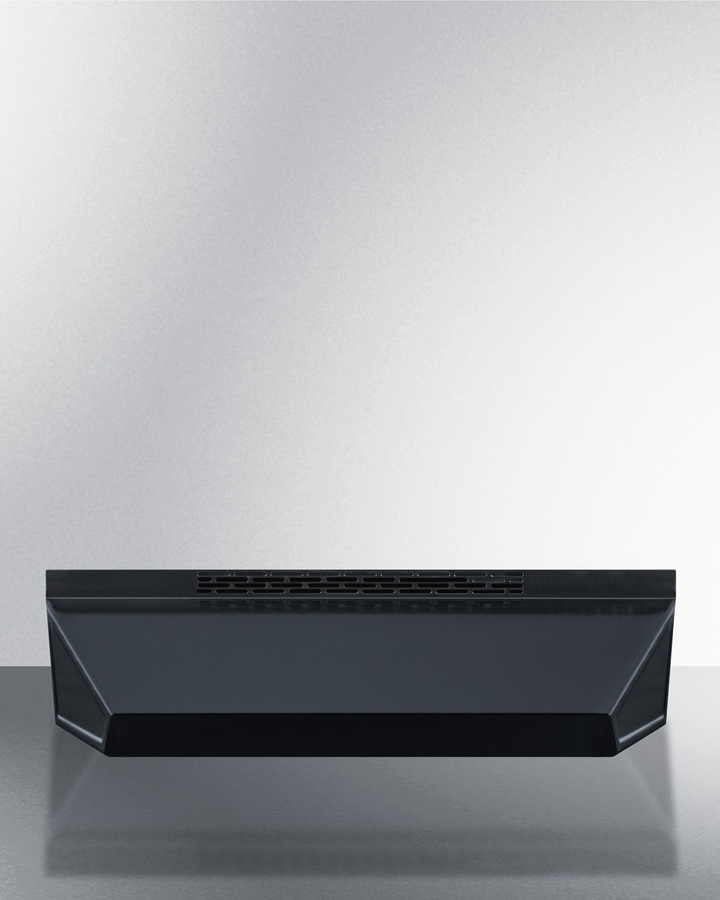

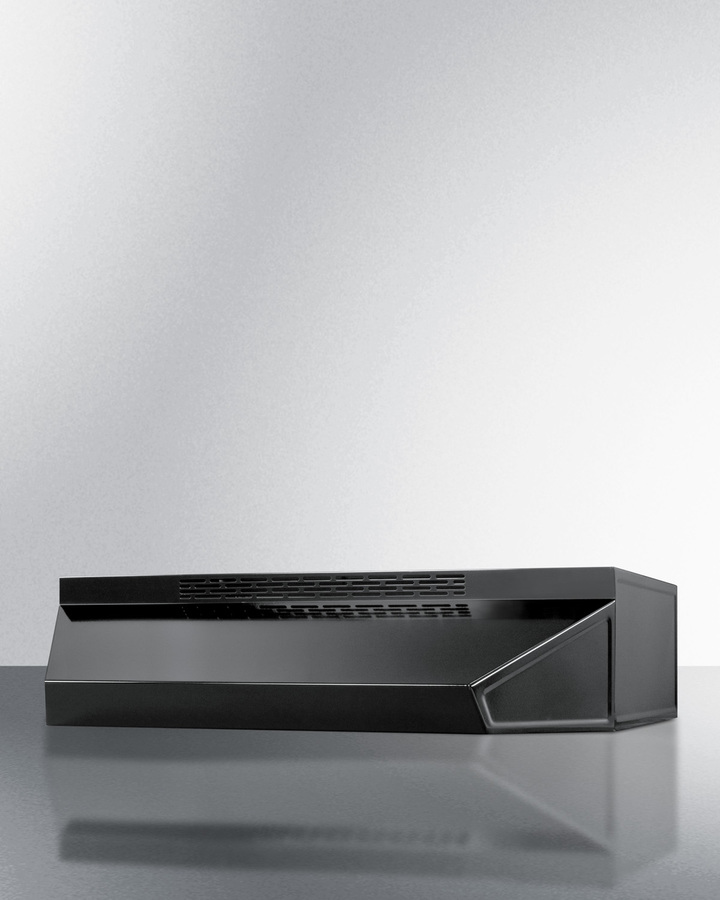

30" Under Cabinet Ductless Range Hood, ADA Compliant

Model: ADAH1730B

30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B
30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B
30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B
30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B
30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B

Color : Other

30" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1730B
Other

Key Features

  • ADA compliant design

  • Black finish

  • 30" width

  • Ductless range hood

  • Two-speed fan

  • Charcoal liner

  • Switchable light option

  • Made in the USA

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

ADA compliant design

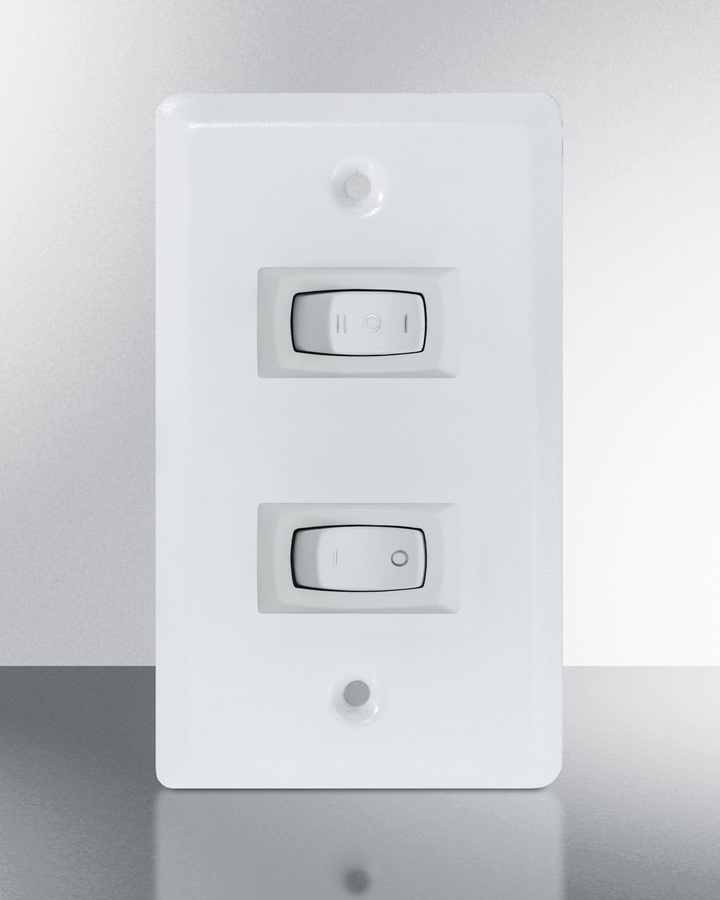

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Black finish

Stainless steel and white range hoods also available in this size and series

30" width

Designed to fit over commonly sized ranges and cooktops

Ductless range hood

Use for recirculating operation where no ducting to the outside is available

Two-speed fan

High and low setting gives you the right amount of power for most general cooking applications

Charcoal liner

Filter includes a charcoal liner for better absorption of grease and odors

Switchable light option

Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.

Made in the USA

Solidly constructed for years of use

More sizes available

Also available in 18", 20", 24", and 36" wide sizes

Ducted choices available by special order

For a ducted version of this hood, see the ADAH16 series

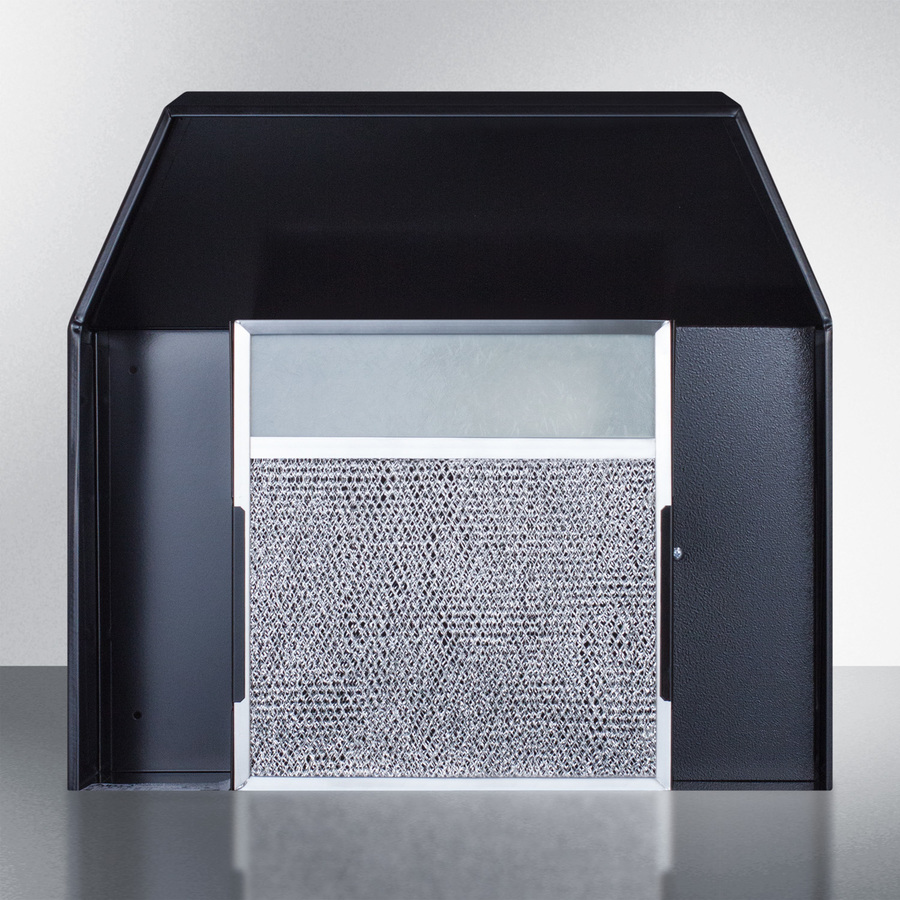

Dishwasher-safe aluminum filter

Removable mesh filter with solid construction and easy cleanability

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width30 in.
Height5 in.
Length18 in.
Weight18 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.56 ft³
Dimensional Weight19.42 lbs.
Total of Cubes1.56 ft³
Total of Dimensional Weight19.42 lbs.

Overview Range Hood

Nominal Height5.0" (13 cm)
Height of Cabinet5.0" (13 cm)
Nominal Width30.0" (76 cm)
Width30.0" (76 cm)
Nominal Depth18.0" (46 cm)
Depth18.0" (46 cm)
CabinetBlack
US Electrical SafetyUL
Weight18.0 lbs. (8 kg)
Parts & Labor Warranty1 Year
UPC761101064055
InstallationUnder Cabinet
VentingRecirculating
Number of Fan Speeds2
Maximum Air Movement160.0 CFM
