24" Under Cabinet Ductless Range Hood, ADA Compliant - ADAH1724B

This product has been discontinued by the manufacture and is no longer available.

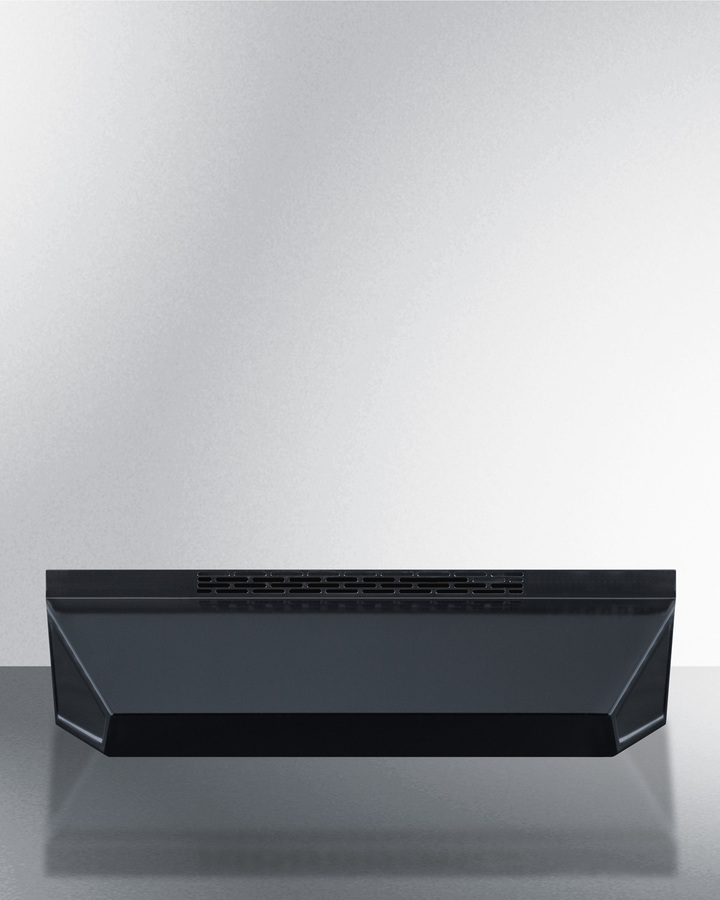

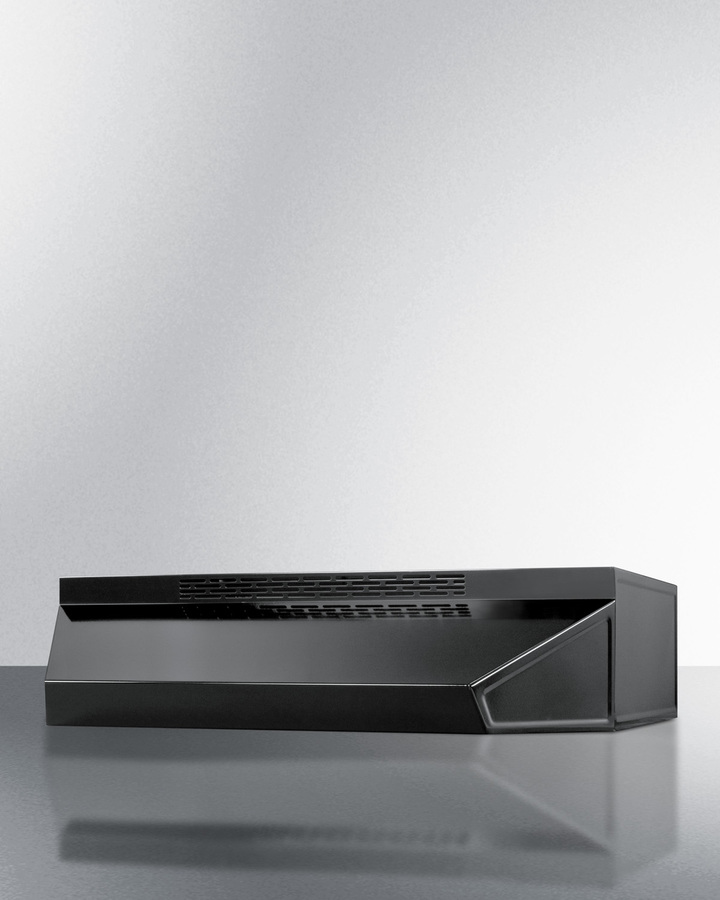

24" Under Cabinet Ductless Range Hood, ADA Compliant

Model: ADAH1724B

24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B
24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B
24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B
24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B
24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B

Color : Other

24" Under Cabinet Ductless Range Hood, ADA Compliant ADAH1724B
Other

Key Features

  • Ductless range hood

  • 24" width

  • Black finish

  • Two-speed fan

  • Charcoal liner

  • Switchable light option

  • ADA compliant design

  • Made in the USA

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Ductless range hood

Use for recirculating operation where no ducting to the outside is available

24" width

Designed to fit over slimmer ranges and cooktops

Black finish

Stainless steel and white range hoods also available in this size and series

Two-speed fan

High and low setting gives you the right amount of power for most general cooking applications

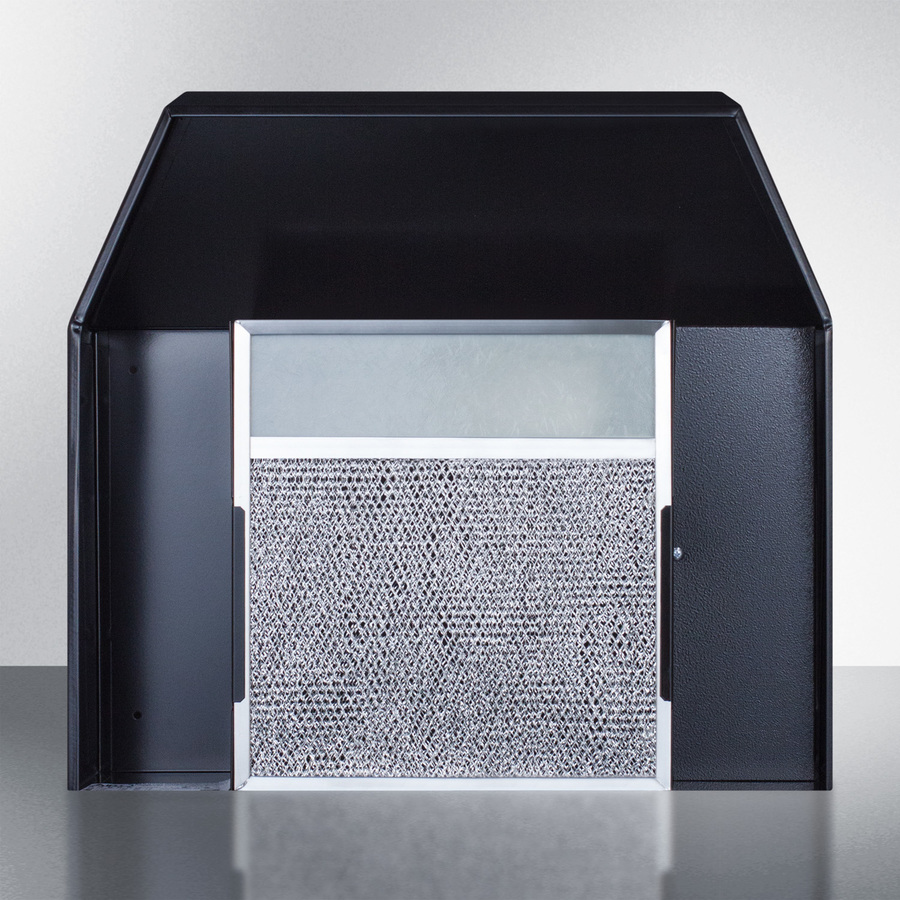

Charcoal liner

Filter includes a charcoal liner for better absorption of grease and odors

Switchable light option

Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.

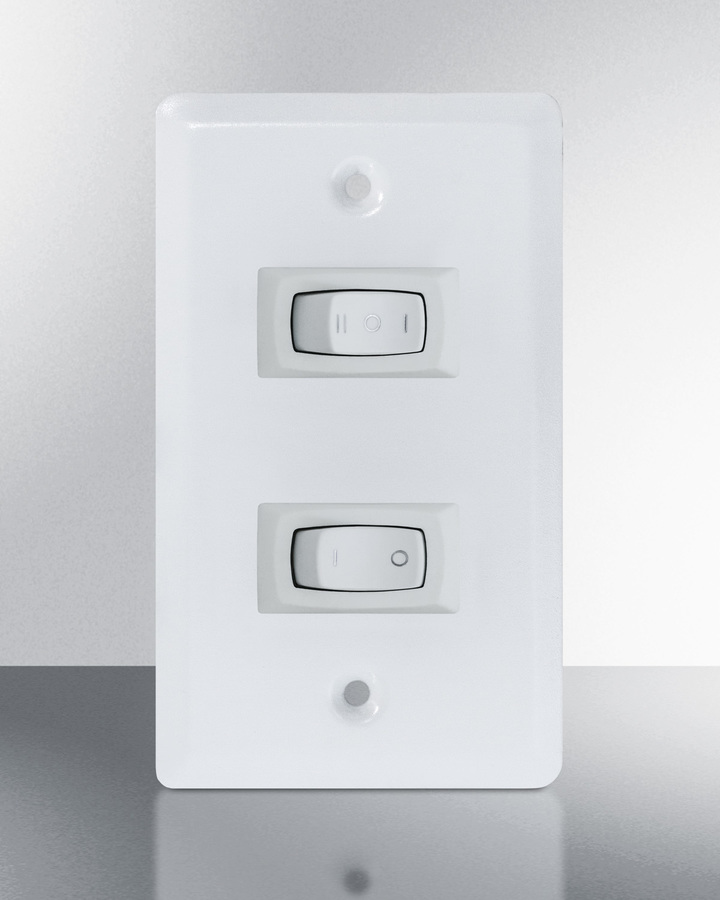

ADA compliant design

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Made in the USA

Solidly constructed for years of use

More sizes available

Also available in 18", 20", 30", and 36" wide sizes

Ducted choices available by special order

For a ducted version of this hood, see the ADAH16 series

Dishwasher-safe aluminum filter

Removable mesh filter with solid construction and easy cleanability

Specifications

Dimensions & Weight

Width24 in.
Height5 in.
Length18 in.
Weight14 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.25 ft³
Dimensional Weight15.54 lbs.
Total of Cubes1.25 ft³
Total of Dimensional Weight15.54 lbs.

Overview Range Hood

Height of Cabinet5.0" (13 cm)
Width24.0" (61 cm)
Depth18.0" (46 cm)
CabinetBlack
US Electrical SafetyUL
Weight14.0 lbs. (6 kg)
Parts & Labor Warranty1 Year
UPC761101064024
InstallationUnder Cabinet
VentingRecirculating
Number of Fan Speeds2
Maximum Air Movement160.0 CFM
