20" Under Cabinet Convertible Range Hood, ADA Compliant - ADAH1620SS

This product has been discontinued by the manufacture and is no longer available.

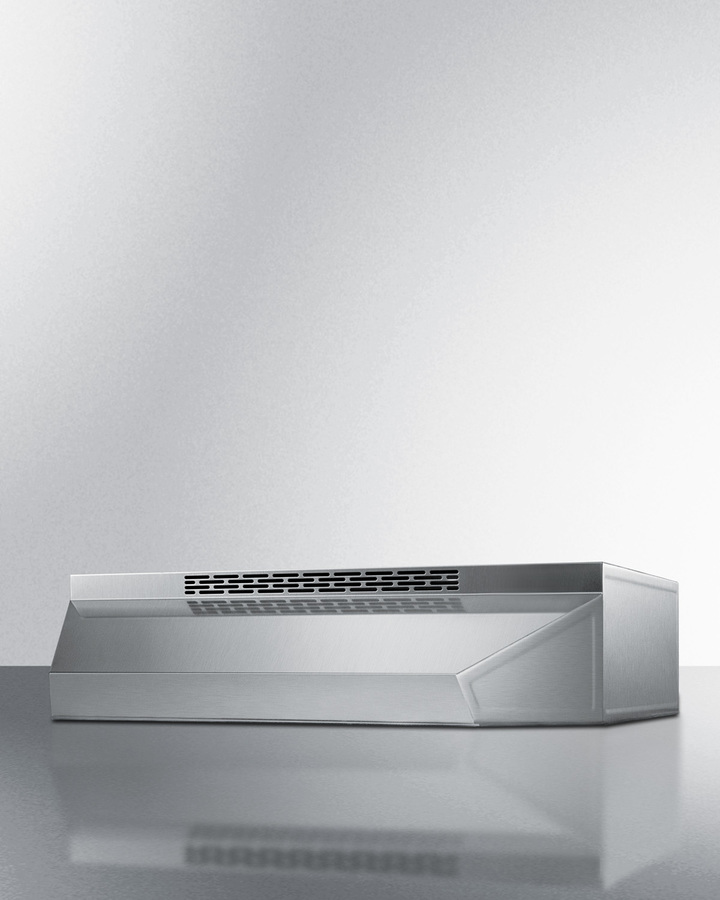

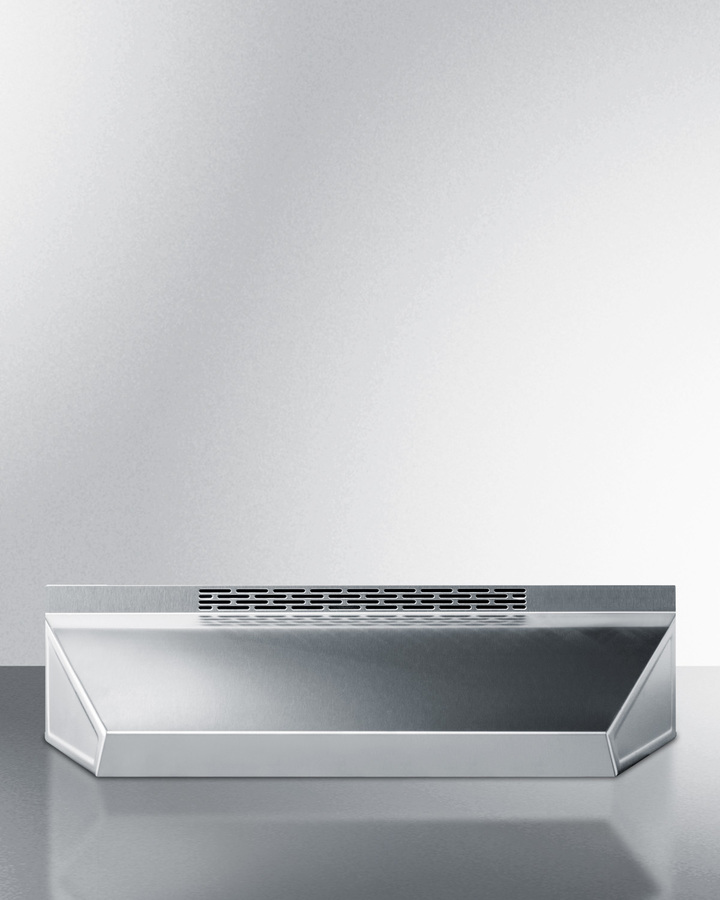

20" Under Cabinet Convertible Range Hood, ADA Compliant

Model: ADAH1620SS

20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS
20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS
20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS
20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS
20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS

Color : Other

20" Under Cabinet Convertible Range Hood, ADA Compliant ADAH1620SS
Other

Key Features

  • Stainless steel finish

  • ADA compliant design

  • Two-speed fan

  • Charcoal liner

  • Switchable light option

  • Convertible design

  • More sizes available

  • 20" width

Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Stainless steel finish

White and black range hoods also available in this size and series

ADA compliant design

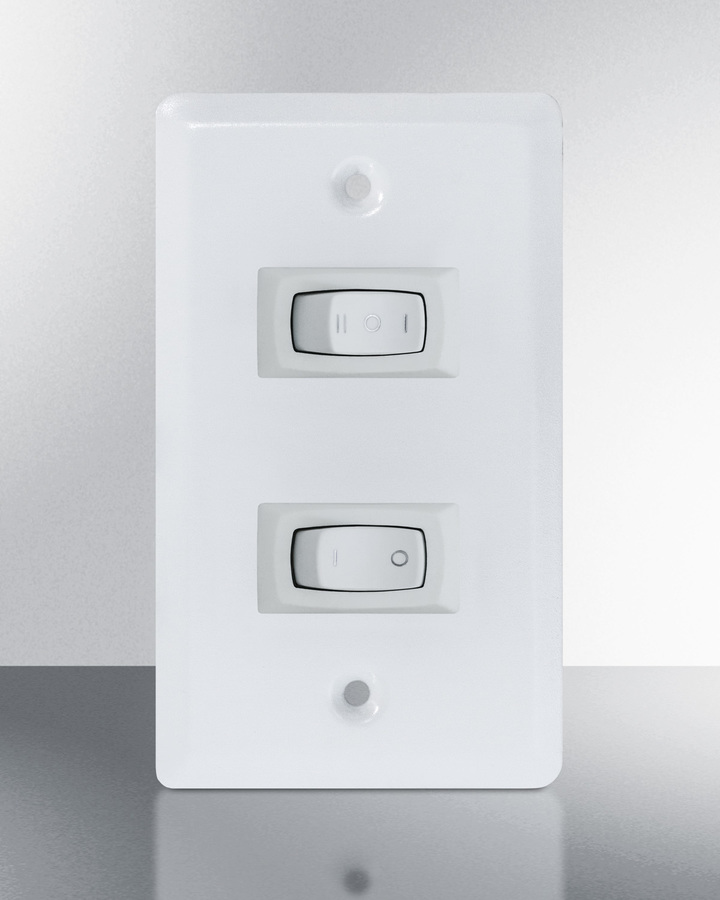

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

Two-speed fan

High and low setting gives you the right amount of power for most general cooking applications

Charcoal liner

Filter includes a charcoal liner for better absorption of grease and odors

Switchable light option

Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.

Convertible design

Use top or rear venting or convert into non-vented recirculating mode

More sizes available

Also available in 18", 24", 30", and 36" wide sizes

20" width

Designed to fit over slimmer ranges and cooktops

Made in the USA

Solidly constructed for years of use

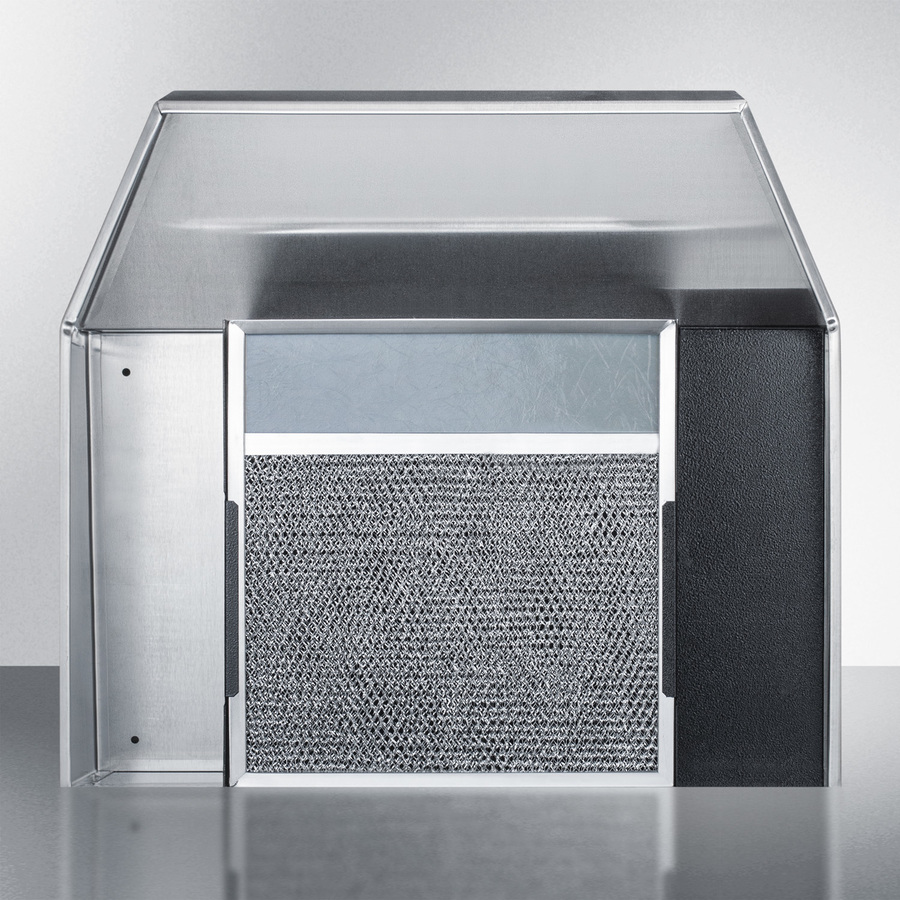

Dishwasher-safe aluminum filter

Removable mesh filter with solid construction and easy cleanability

Specifications

Dimensions & Weight

Width20 in.
Height5 in.
Length18 in.
Weight14 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.04 ft³
Dimensional Weight12.95 lbs.
Total of Cubes1.04 ft³
Total of Dimensional Weight12.95 lbs.

Overview Range Hood

Height of Cabinet5.0" (13 cm)
Width20.0" (51 cm)
Depth18.0" (46 cm)
CabinetStainless Steel
US Electrical SafetyUL
Weight14.0 lbs. (6 kg)
Parts & Labor Warranty1 Year
UPC761101064161
InstallationUnder Cabinet
VentingConvertible
Number of Fan Speeds2
Maximum Air Movement160.0 CFM
