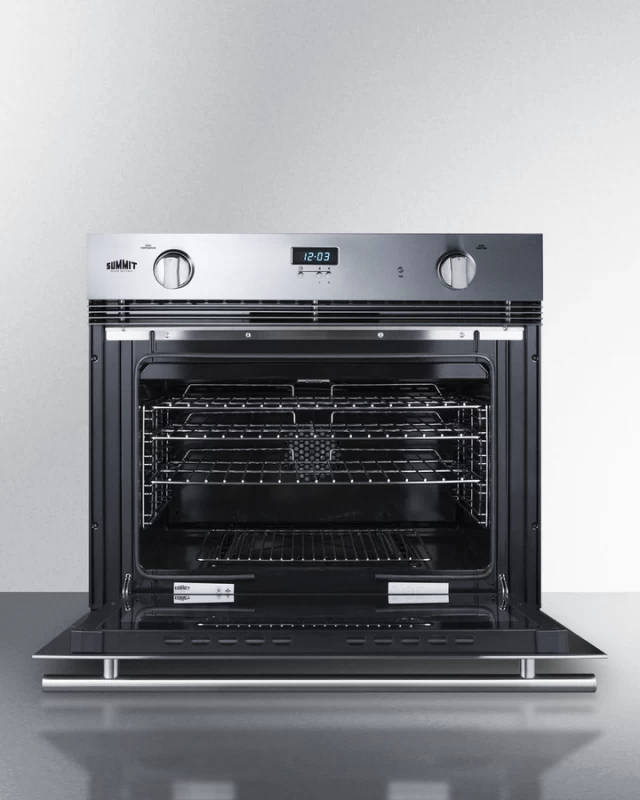

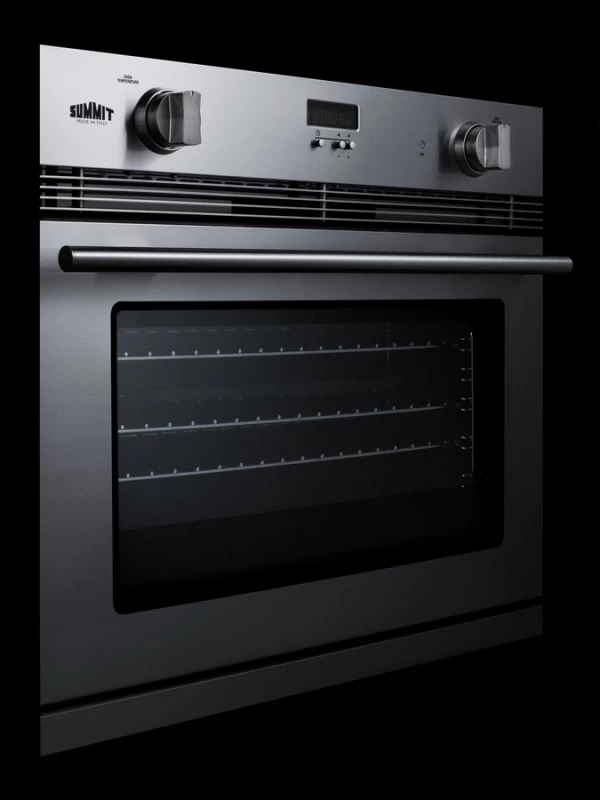

30" Wide Gas Wall Oven - SGWOGD30
30" Wide Gas Wall Oven
Model: SGWOGD30










30" Wide Gas Wall Oven
Model: SGWOGD30
Key Features
30" wide gas wall oven
Stainless steel construction
Made in Italy
Interior light
Professional handle
LP convertible
Large oven window
Convection function
Description
Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.
Features
30" wide gas wall oven
Deluxe design for wall installation in 26 5/8" H x 28" W x 24" D cutouts
Stainless steel construction
Professional style built to last with brushed stainless steel construction on the door and manifold
Made in Italy
Designed and manufactured in Italy for Summit
Interior light
Stays on during the bake and broil process so you can observe your cooking progress at a glance
Professional handle
Solid tube handle in brushed stainless steel for a luxury look and strong grip
LP convertible
Unit comes set for natural gas but ships with an LP kit for easy conversion to propane connections
Large oven window
Extra wide glass window provides a full view of your cooking
Convection function
Interior fan option offers more even convection heating, ideal for faster defrosting large dishes. Combine with the bake or broil function
Broil function
Broiler is located inside main cavity and can be accessed easily with its knob control
Powerful cooking
12,000 BTU oven offers endless cooking possibilities
Intuitive knob controls
Oversized analog knobs provide a simple and intuitive cooking experience with clear markings for each oven function
Porcelain interior
Durable construction built to last

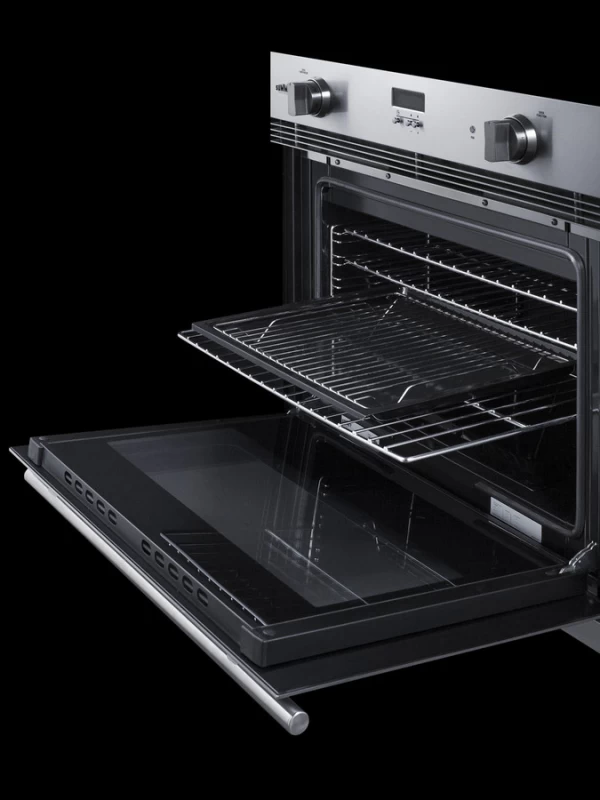

Adjustable shelves
Includes three slide-out shelves with five positions to best accommodate a variety of dish sizes
Broiler pan included
Porcelain tray with removable metal grate
Digital clock and timer
Conveniently located in the center of the control panel
Electronic ignition
Pre-installed cord with a 3-prong plug included
Regulator included
Gas connector specially made to fit this unit's safety valve
Thermocouple flame failure protection
Automatically turns gas off if flame is extinguished
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview
| Nominal Height | 27.0" (69 cm) |
| Height of Cabinet | 27.0" (69 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.0 cu.ft. (85 L) |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 15.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 144.0 lbs. (65 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101064819 |
Gas Walloven
| Ignition | Spark |
| LP Convertible | Yes |
| Oven Capacity | 3.0 |
| Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 3 |
| Oven Window | Yes |
| Interior Height | 13.75" (35 cm) |
| Interior Width | 23.0" (58 cm) |
| Interior Depth | 16.0" (41 cm) |
| Cutout Height | 26.63" (68 cm) |
| Cutout Width | 28.0" (71 cm) |
| Cutout Depth | 24.0" (61 cm) |
Dimensions & Weight
| Width | 29.5 in. |
| Height | 27 in. |
| Length | 22.63 in. |
| Weight | 144 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.5 in. |
| Shipping Height | 32 in. |
| Shipping Length | 27.63 in. |
| Shipping Weight | 184 lbs. |
| Total of Shipping Weight | 184 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.43 ft³ |
| Dimensional Weight | 129.67 lbs. |
| Total of Cubes | 10.43 ft³ |
| Total of Dimensional Weight | 129.67 lbs. |
Overview Gas Walloven
| Nominal Height | 27.0" (69 cm) |
| Height of Cabinet | 27.0" (69 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.0 cu.ft. (85 L) |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 15.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 144.0 lbs. (65 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101064819 |
| Ignition | Spark |
| LP Convertible | Yes |
| Oven Capacity | 3.0 |
| Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Cleaning Type | Manual |
| Oven Rack Qty | 3 |
| Oven Window | Yes |
| Interior Height | 13.75" (35 cm) |
| Interior Width | 23.0" (58 cm) |
| Interior Depth | 16.0" (41 cm) |
| Cutout Height | 26.63" (68 cm) |
| Cutout Width | 28.0" (71 cm) |
| Cutout Depth | 24.0" (61 cm) |
