$530.00

24" Wide 230V 4-Burner Coil Cooktop - ZEL03

24" Wide 230V 4-Burner Coil Cooktop

Model: ZEL03

24" Wide 230V 4-Burner Coil Cooktop ZEL0324" Wide 230V 4-Burner Coil Cooktop ZEL0324" Wide 230V 4-Burner Coil Cooktop ZEL0324" Wide 230V 4-Burner Coil Cooktop ZEL0324" Wide 230V 4-Burner Coil Cooktop ZEL03
24" Wide 230V 4-Burner Coil Cooktop ZEL03
24" Wide 230V 4-Burner Coil Cooktop ZEL03
24" Wide 230V 4-Burner Coil Cooktop ZEL03
24" Wide 230V 4-Burner Coil Cooktop ZEL03
24" Wide 230V 4-Burner Coil Cooktop ZEL03

$530.00

Color : Stainless Steel Look

24" Wide 230V 4-Burner Coil Cooktop ZEL03
Stainless Steel Look

Key Features

  • Classic fit

  • Made in the USA

  • Chrome finish

  • Coil elements

  • Three 6" burners

  • Chrome drip pans

  • Recessed top

  • Side controls

Read More

Description

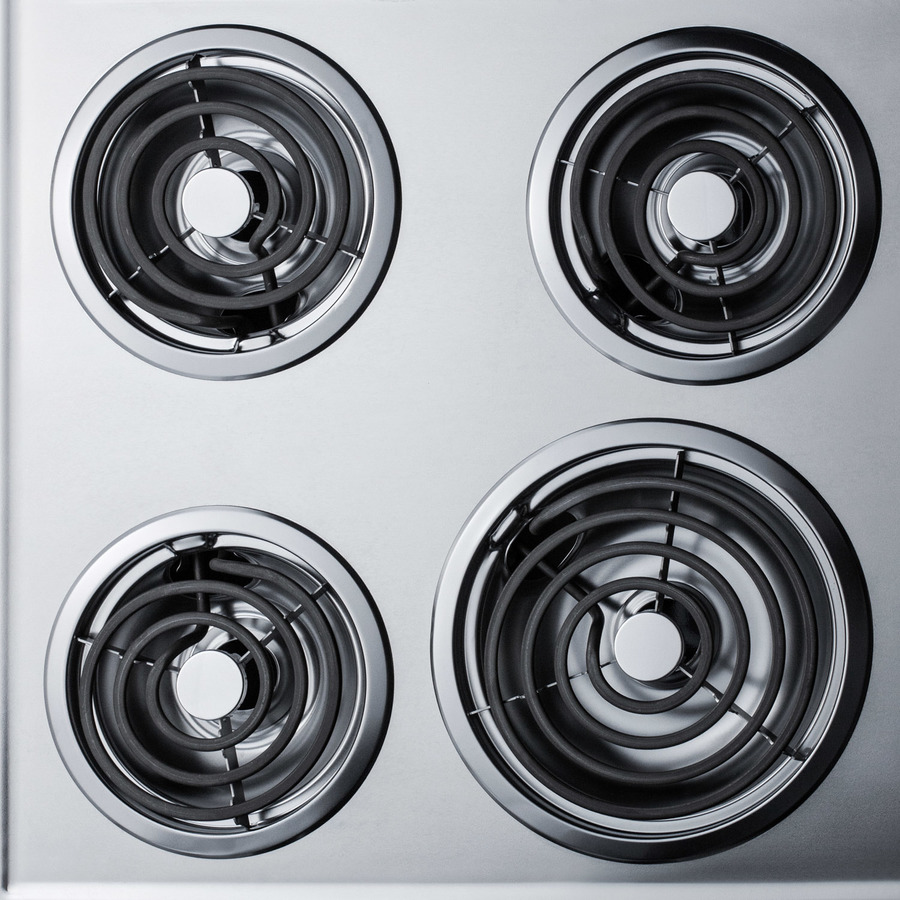

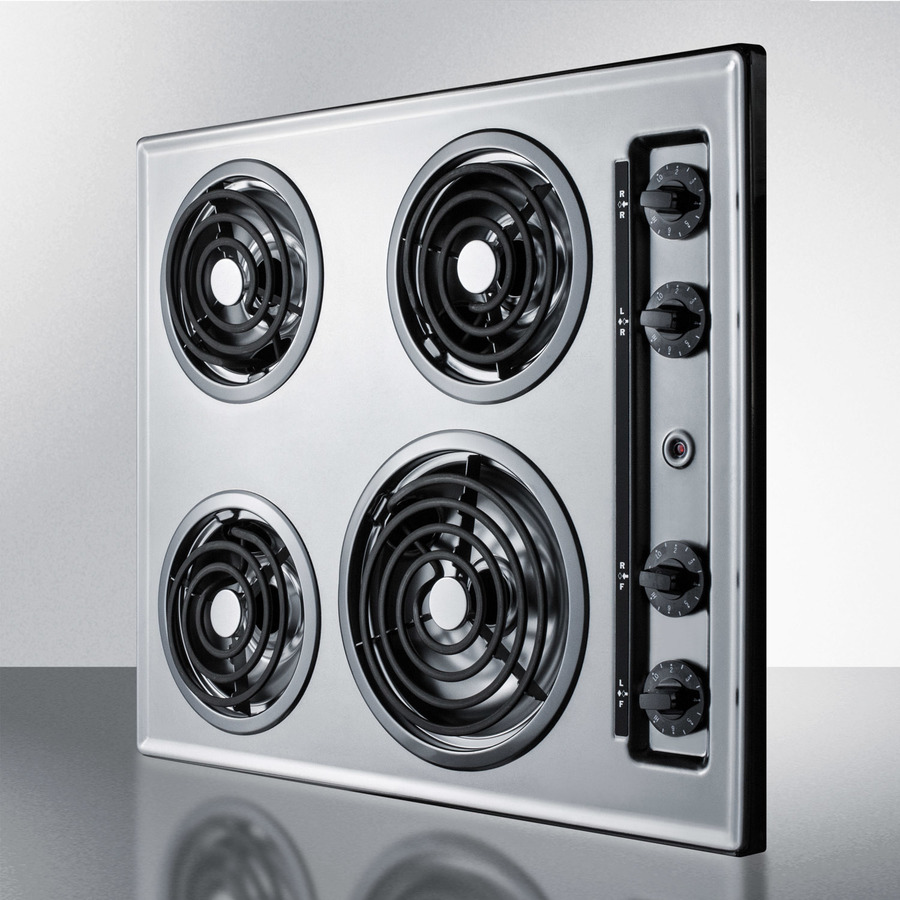

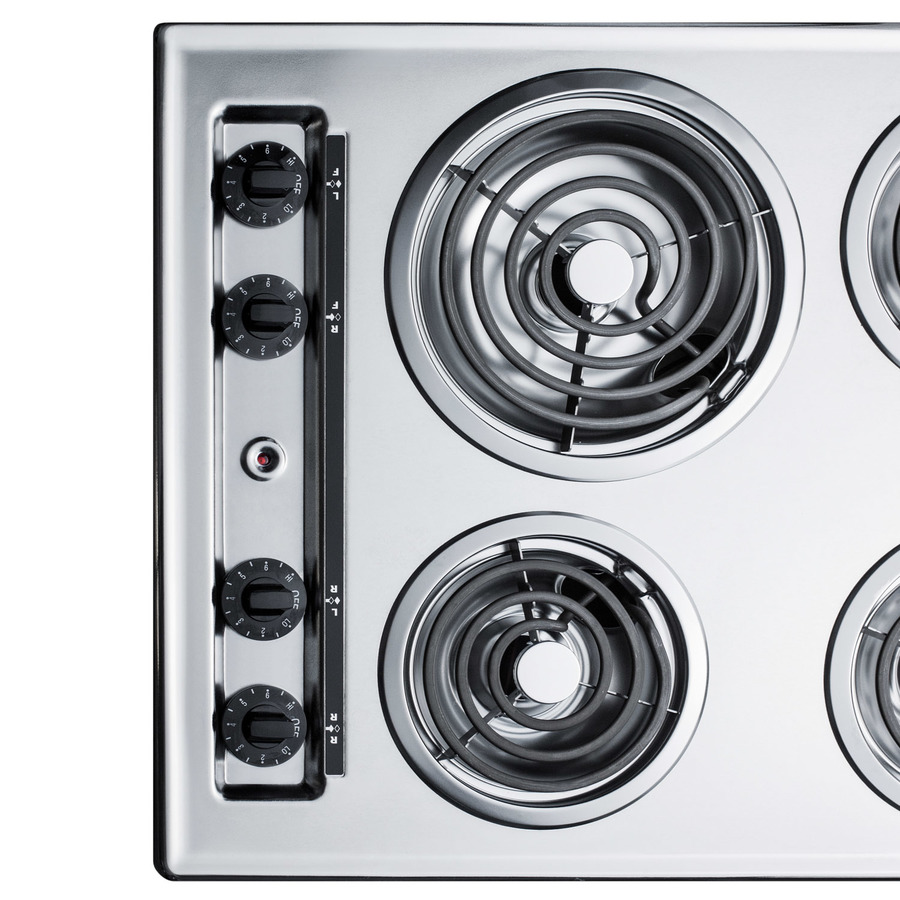

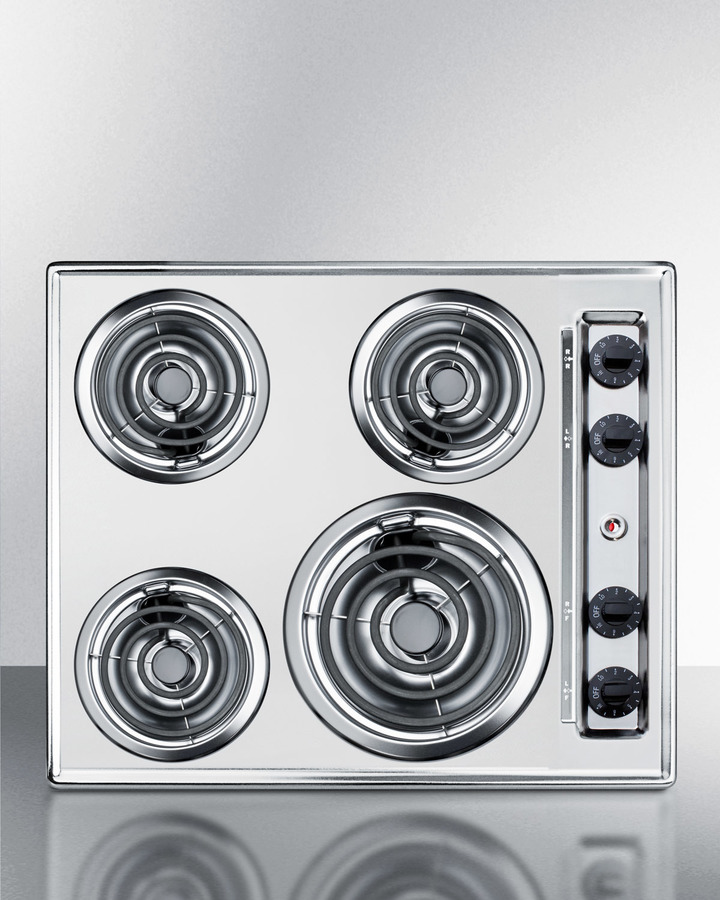

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The ZEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The ZEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Classic fit

Fits 22 5/8" W x 18 5/8" D counter cutouts

Made in the USA

Designed and constructed domestically

Chrome finish

Metallic design for a professional look with lasting durability

Coil elements

Traditional design offers reliable heating and strong durability for everyday use

Three 6" burners

Standard burners accommodate most heating needs

Chrome drip pans

Each coil element includes a removable chrome pan to catch spills for easier cleanup

Recessed top

Curved design helps to contain spills on the surface

Side controls

Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens

8" burner

Larger element is ideal for heating wider pots and pans

Push-to-turn controls

Knobs require a small amount of force for added safety

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

Safety burners with low wattage outputs

Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

220-240V operation

Professional installation required

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width24 in.
Height3.75 in.
Length20 in.
Weight27 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.04 ft³
Dimensional Weight12.95 lbs.
Total of Cubes1.04 ft³
Total of Dimensional Weight12.95 lbs.

Overview Electric Cooktop

Nominal Height4.0" (10 cm)
Height of Cabinet3.75" (10 cm)
Nominal Width24.0" (61 cm)
Width24.0" (61 cm)
Nominal Depth20.0" (51 cm)
Depth20.0" (51 cm)
CabinetChrome
US Electrical SafetyUL
Canadian Electrical SafetyULC
Amps30.0
Voltage/Frequency230 V AC/60 Hz
Weight27.0 lbs. (12 kg)
Parts & Labor Warranty1 Year
UPC761101061658
Heating TypeRadiant
Element TypeCoils
Number of Elements4
ControlsDial
Countertop Cutout Width22.63" (57 cm)
Countertop Cutout Depth18.63" (47 cm)
Element #1 Size6.0" (15 cm)
Element #1 Wattage675.0
Element #2 Size8.0" (20 cm)
Element #2 Wattage950.0
Element #3 Size6.0" (15 cm)
Element #3 Wattage675.0
Element #4 Size6.0" (15 cm)
Element #4 Wattage675.0
Power Cord IncludedNo
