$360.00

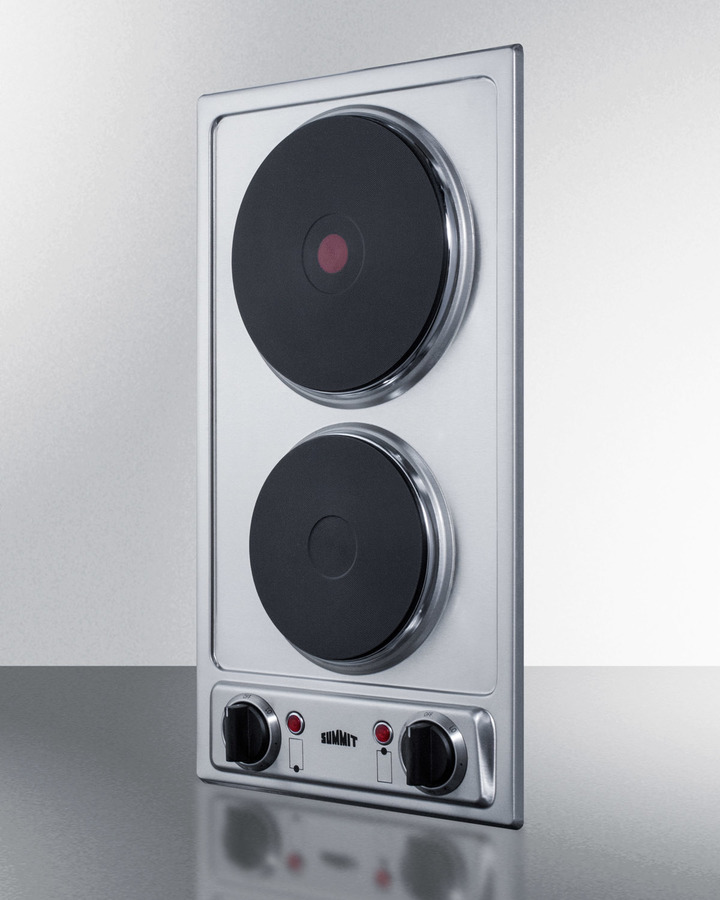

12" Wide 230V 2-Burner Solid Disk Cooktop - CSD2B230

12" Wide 230V 2-Burner Solid Disk Cooktop

Model: CSD2B230

12" Wide 230V 2-Burner Solid Disk Cooktop CSD2B23012" Wide 230V 2-Burner Solid Disk Cooktop CSD2B230
12" Wide 230V 2-Burner Solid Disk Cooktop CSD2B230
12" Wide 230V 2-Burner Solid Disk Cooktop CSD2B230

$360.00

Color : Stainless Steel

12" Wide 230V 2-Burner Solid Disk Cooktop CSD2B230
Stainless Steel

Key Features

  • Solid disk elements

  • Easier cleanup

  • 8" element

  • Durable cast iron design

  • 6" element

  • Push-to-turn controls

  • Indicator lights

  • Designed for built-in installation

Read More

Description

Summit's selection of electric cooktops offers the perfect fit for every application. Sized at 12" wide, the CSD2B230 is a 230V cooktop with two solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The rear 2000W burner is sized with an 8" diameter to fit large cookware, while the front 1000W 6" element accommodates most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes upfront push-to-turn knobs and an "on" indicator light for each burner for added safety. With its modern style and durable design, the CSD2B230 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 4-burner version, see the CSD4B24.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Solid disk elements

Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience

Easier cleanup

Fully sealed cast iron elements offer easier cleanup than traditional coil elements

8" element

Rear 2000W burner with wide 8" diameter is ideal for heating larger cooking vessels

Durable cast iron design

Solid metal elements hold up to heavy duty use

6" element

Front element offers 1000W of cooking power to accommodate most heating needs

Push-to-turn controls

Knobs require a small amount of force to help prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

Designed for built-in installation

Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility

Stainless steel finish

Surface is made from stainless steel for an attractive and easy to clean look

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width11.25 in.
Height4.13 in.
Length20 in.
Weight13 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement0.54 ft³
Dimensional Weight5.6 lbs.
Total of Cubes0.54 ft³
Total of Dimensional Weight5.6 lbs.

Overview Electric Cooktop

Nominal Height4.13" (10 cm)
Height of Cabinet4.13" (10 cm)
Nominal Width12.0" (30 cm)
Width11.25" (29 cm)
Nominal Depth20.0" (51 cm)
Depth20.0" (51 cm)
CabinetStainless Steel
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps12.5
Voltage/Frequency230 V AC/60 Hz
Weight13.0 lbs. (6 kg)
Parts & Labor Warranty1 Year
UPC761101056333
Heating TypeRadiant
SurfaceStainless Steel
Element TypeCast Iron
Number of Elements2
ControlsDial
Countertop Cutout Height5.0" (13 cm)
Countertop Cutout Width10.5" (27 cm)
Countertop Cutout Depth19.25" (49 cm)
Power Source230V
Element #1 Size6.0" (15 cm)
Element #1 Wattage1000.0
Element #2 Size8.0" (20 cm)
Element #2 Wattage2000.0
Power Cord IncludedNo
