30" Wide 208-240V 5-Burner Radiant Cooktop - CR5B30T8W

This product has been discontinued by the manufacture and is no longer available.

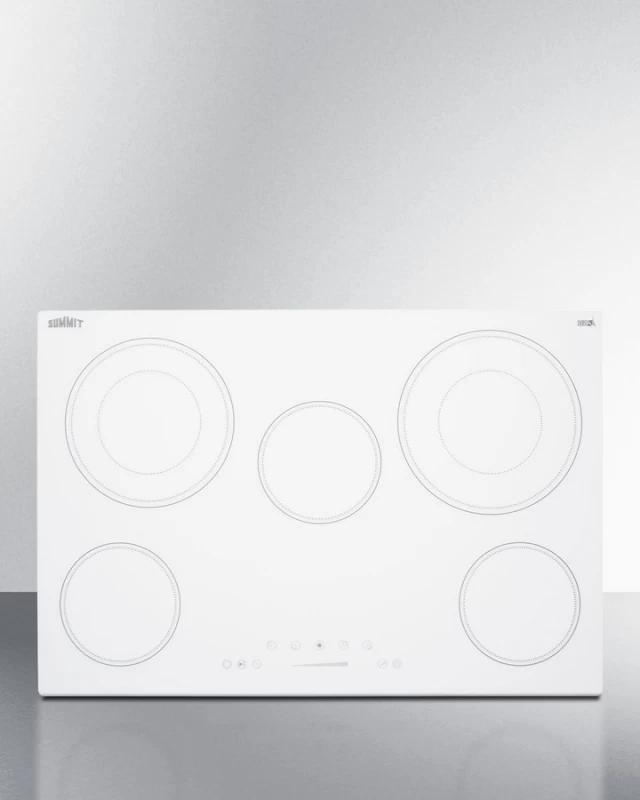

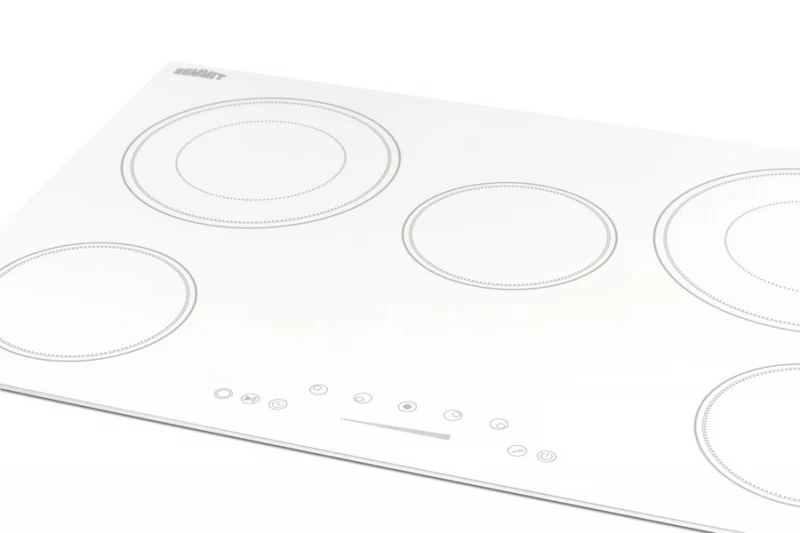

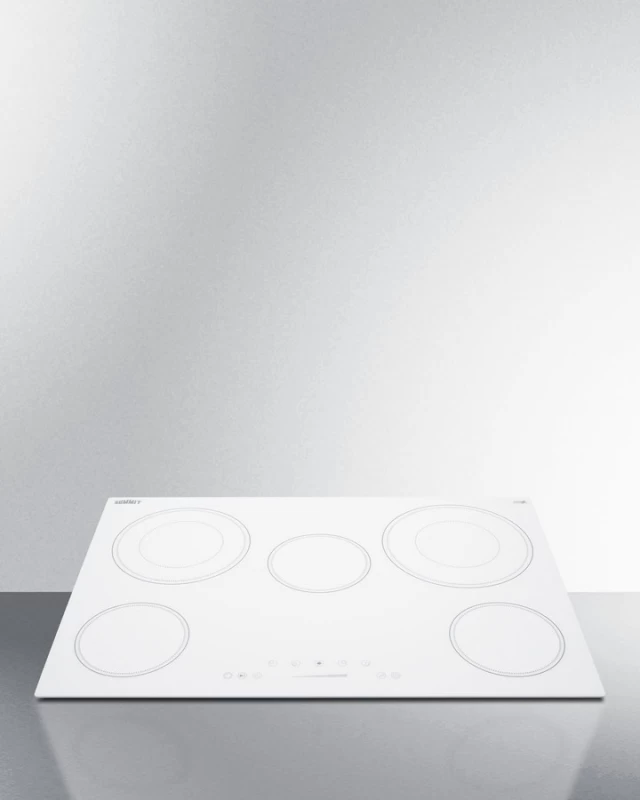

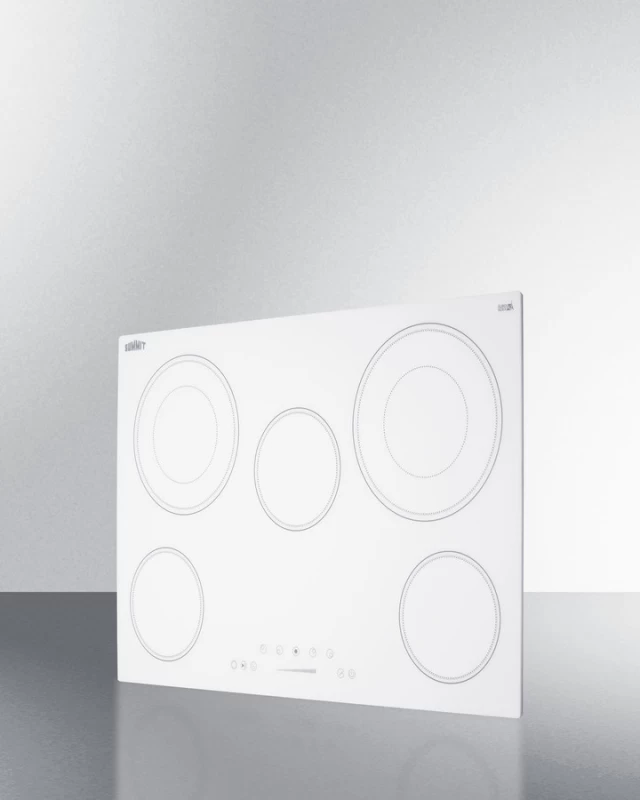

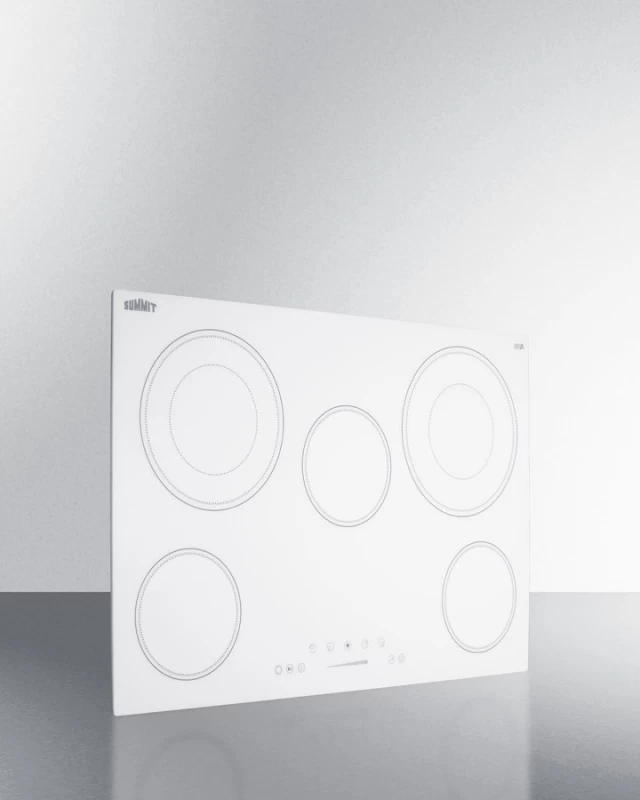

30" Wide 208-240V 5-Burner Radiant Cooktop

Model: CR5B30T8W

30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
+2more

Color : White

30" Wide 208-240V 5-Burner Radiant Cooktop CR5B30T8W
White

Key Features

  • 30" wide 5-burner radiant cooktop

  • EuroKera glass surface

  • Extra large 2500W burner

  • Large 2200W burner

  • 2 Standard 1200W burners

  • Dual cooking zones

  • Warming zone

  • Digital touch controls

Read More

Description

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR5B30T8W is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a clean white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 2500W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B30T8W brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications
Certifications

Features

30" wide 5-burner radiant cooktop

Designed to fit common 29 1/2" x 19 5/8" counter cutouts

EuroKera glass surface

Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

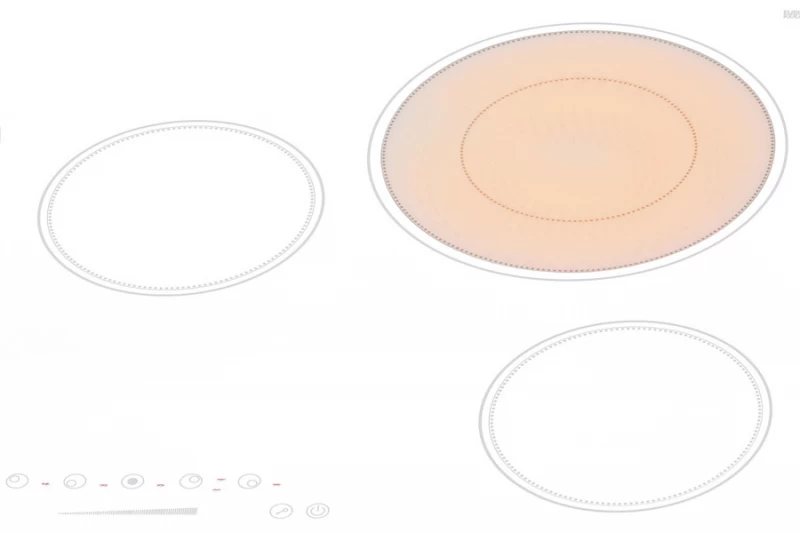

Extra large 2500W burner

Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed

Large 2200W burner

Left rear 2200W element is 9" in diameter to handle larger cooking vessels

2 Standard 1200W burners

Front left and front right burners are 6.5" in diameter to meet most cooking needs

Dual cooking zones

Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

Warming zone

Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

Digital touch controls

Easy operation with a digital control panel and digital display conveniently centered upfront

9 power levels

Select and adjust your heating levels at the touch of a button

Timer

Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Residual heat indicator light

Indicator shows when the surface is still hot to touch

ADA compliant design

Upfront controls meet ADA guidelines for easier accessibilty

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

208-240V operation

Requires professional hardwired installation (cord not included)

Certifications

ADA Compliant certification

ADA Compliant

Specifications

Warranty

Parts1 Year
Labor1 Year

Overview

Nominal Height2.13" (5 cm)
Height of Cabinet2.13" (5 cm)
Nominal Width31.0" (79 cm)
Width30.25" (77 cm)
Nominal Depth21.0" (53 cm)
Depth20.5" (52 cm)
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps30.0
Voltage/Frequency240 V AC/60 Hz
Weight28.0 lbs. (13 kg)
Parts & Labor Warranty1 Year
UPC761101077550

Electric Cooktop

Heating TypeRadiant
SurfaceGlass
Element TypeGlasstop
Number of Elements5
ControlsDigital
Cooking TimerYes
Countertop Cutout Height3.2" (8 cm)
Countertop Cutout Width29.5" (75 cm)
Countertop Cutout Depth19.63" (50 cm)
Element #1 Size6.5" (17 cm)
Element #1 Wattage1200.0
Element #2 Size9.0" (23 cm)
Element #2 Wattage2200.0
Element #3 Size6.5" (17 cm)
Element #3 Wattage100.0
Element #4 Size9.75" (25 cm)
Element #4 Wattage2500.0
Element #5 Size6.5" (17 cm)
Element #5 Wattage1200.0
Power Cord IncludedNo

Dimensions & Weight

Width30.25 in.
Height2.13 in.
Length20.5 in.
Weight28 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35.25 in.
Shipping Height7.13 in.
Shipping Length25.5 in.
Shipping Weight68 lbs.
Total of Shipping Weight68 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement0.76 ft³
Dimensional Weight7.96 lbs.
Total of Cubes0.76 ft³
Total of Dimensional Weight7.96 lbs.

Overview Electric Cooktop

Nominal Height2.13" (5 cm)
Height of Cabinet2.13" (5 cm)
Nominal Width31.0" (79 cm)
Width30.25" (77 cm)
Nominal Depth21.0" (53 cm)
Depth20.5" (52 cm)
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps30.0
Voltage/Frequency240 V AC/60 Hz
Weight28.0 lbs. (13 kg)
Parts & Labor Warranty1 Year
UPC761101077550
Heating TypeRadiant
SurfaceGlass
Element TypeGlasstop
Number of Elements5
ControlsDigital
Cooking TimerYes
Countertop Cutout Height3.2" (8 cm)
Countertop Cutout Width29.5" (75 cm)
Countertop Cutout Depth19.63" (50 cm)
Element #1 Size6.5" (17 cm)
Element #1 Wattage1200.0
Element #2 Size9.0" (23 cm)
Element #2 Wattage2200.0
Element #3 Size6.5" (17 cm)
Element #3 Wattage100.0
Element #4 Size9.75" (25 cm)
Element #4 Wattage2500.0
Element #5 Size6.5" (17 cm)
Element #5 Wattage1200.0
Power Cord IncludedNo
