Roomside Series Bathroom Exhaust Fan w/ LED Light, 60 CFM - BEL6
Color : White
Key Features

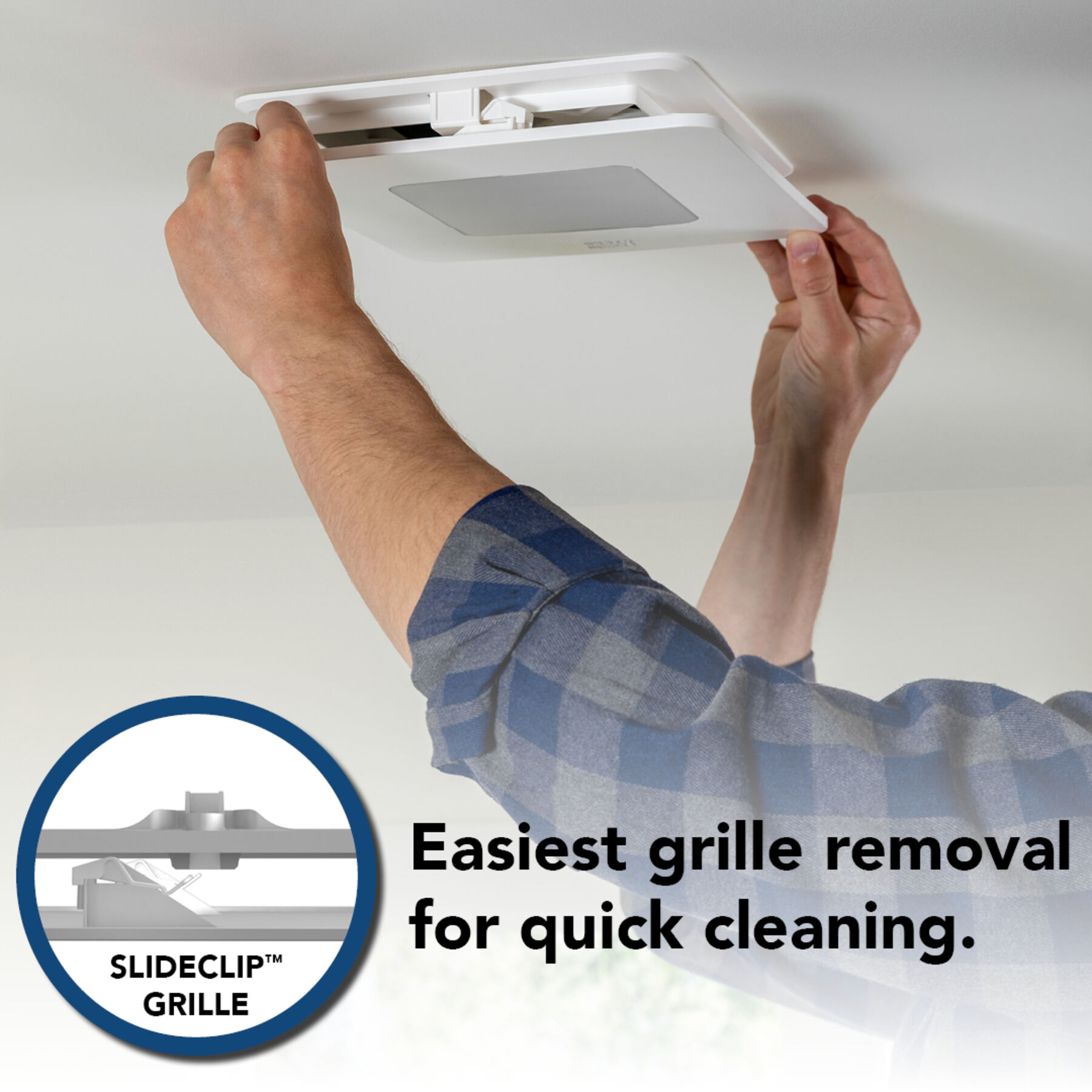

SlideClip™ Grille: Patent pending technology for a springless attachment that allows for fast installation of the grille/cover and easy cleaning.
Seamless Design for Easy Cleaning: Modern CleanCover™ grille blends into the ceiling and allows for quick, easy cleaning.
ENERGY STAR® 4.1: Reduces energy consumption by over 50% compared to standard bath fans.
EZDuct™ Connector: Patented technology provides superior airflow and creates an airtight seal from inside the housing.
Housing fits the most common fan size opening, 7.5” x 7.25”
Versatile Easy Installation: Room side installation makes it possible to retrofit with no attic access and without having to cut drywall - saving time and reducing complexity.
Code Compliant: Engineered for Energy Star 4.1 meets building codes and reduces call-backs.
Quiet Operation: Sound as quiet as a whisper (0.9 sones) with efficient ventilation for rooms up to 45 sq. ft.
Description
Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.
Features
SlideClip™ Grille: Patent pending technology for a springless attachment that allows for fast installation of the grille/cover and easy cleaning.
Seamless Design for Easy Cleaning: Modern CleanCover™ grille blends into the ceiling and allows for quick, easy cleaning.
ENERGY STAR® 4.1: Reduces energy consumption by over 50% compared to standard bath fans.
EZDuct™ Connector: Patented technology provides superior airflow and creates an airtight seal from inside the housing.
Housing fits the most common fan size opening, 7.5” x 7.25”
Versatile Easy Installation: Room side installation makes it possible to retrofit with no attic access and without having to cut drywall - saving time and reducing complexity.
Code Compliant: Engineered for Energy Star 4.1 meets building codes and reduces call-backs.
Quiet Operation: Sound as quiet as a whisper (0.9 sones) with efficient ventilation for rooms up to 45 sq. ft.
Durable LED Light: Long-lasting, integrated LED light is rated for 50,000 hours of life at a 3500K color temperature. Light is dimmable with the compatible wall control (sold separately).
Specifications
Dimensions & Weight
| Width | 9.75 in. |
| Height | 7.5 in. |
| Length | 5.75 in. |
| Weight | - |
| Housing Dimensions | 7.5" x 7.25" x 5.75" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 14.75 in. |
| Shipping Height | 12.5 in. |
| Shipping Length | 10.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.24 ft³ |
| Dimensional Weight | 2.53 lbs. |
| Total of Cubes | 0.24 ft³ |
| Total of Dimensional Weight | 2.53 lbs. |
Product Details
| CFM | 60 |
| Duct Size | 4" |
| ENERGY STAR® certified | Yes |
| Grille Length | 9.75 |
| Grille Width | 9.75 |
| Housing Dimensions | 7.5" x 7.25" x 5.75" |
| Sound Level (Sones) | 0.9 |
| UL Listed | Yes |
| Grille Finish | Polymeric |
| Humidity Sensing | No |
| Motion Sensing | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Recommended Room Size (Sq Ft) | Up to 45 sq. ft. |
| Rated Amps | 0.6 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Globe Material | Polymeric |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2 x 6 |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
| Motor Engineered For Continuous Operation | Yes |
