$3,940.00

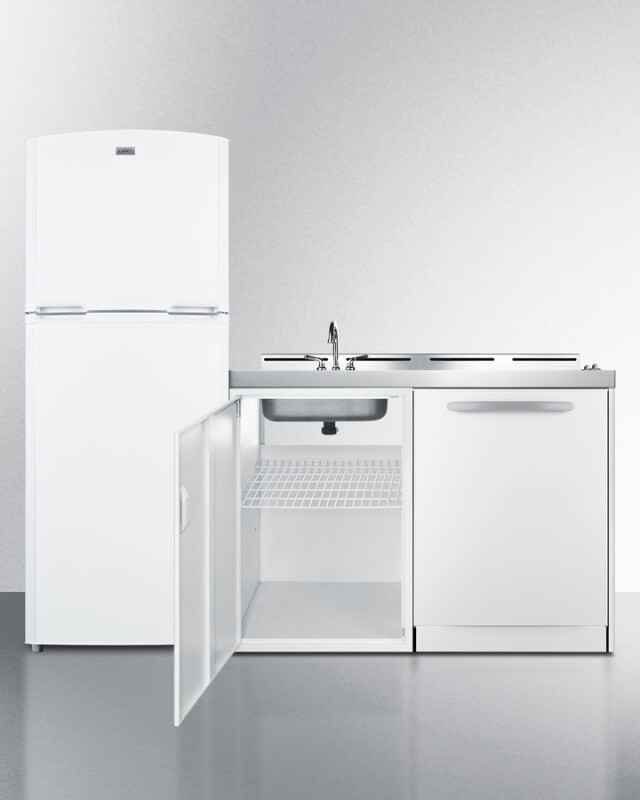

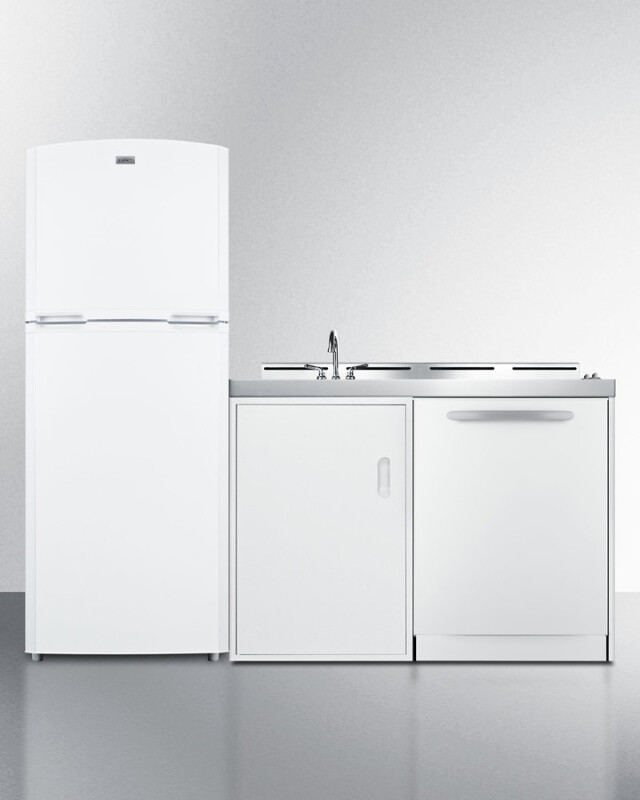

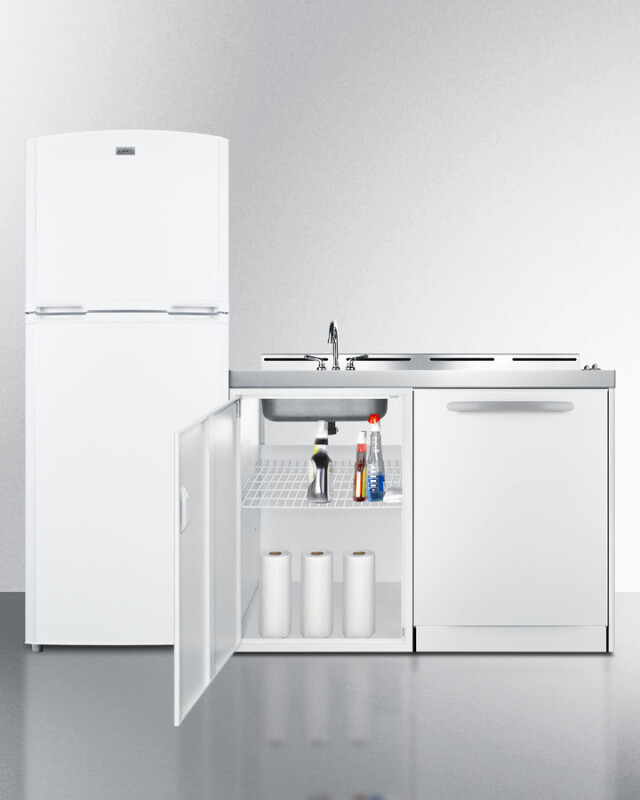

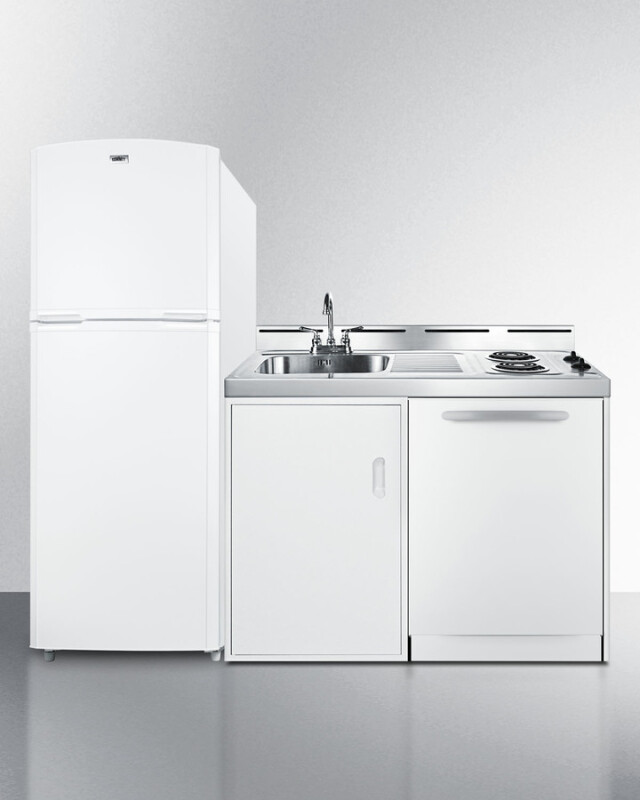

75" Wide All-In-One Kitchenette with Dishwasher - ACKDW75

SummitSummit brand logo

75" Wide All-In-One Kitchenette with Dishwasher

Model: ACKDW75

75" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW7575" Wide All-In-One Kitchenette with Dishwasher ACKDW75
75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
+3more

$3,940.00

Color : White

75" Wide All-In-One Kitchenette with Dishwasher ACKDW75
White

Key Features

  • Complete all-in-one kitchenette

  • Full-sized refrigerator-freezer included

  • Reversible doors

  • Dishwasher included

  • 16 wash cycles

  • Two electric burners

  • Sink and faucet

  • Storage compartment

Read More

Description

SUMMIT brings innovative value into the kitchen with all-in-one combination units for full-service use. Our ACKDW series features a full-sized refrigerator-freezer, dishwasher, 2-burner cooktop, sink, and storage cabinet to create a complete one-wall kitchenette. Model ACKDW75 is comprised of three pieces: our North American made frost-free FF1427W refrigerator-freezer; our C48EL kitchenette with sink, cabinet, and cooktop; and our DW242WADA 24" dishwasher. The exterior features a clean white finish, with stainless steel accents on the kitchenette work surface and dishwasher handle to elevate your kitchen style. The FF1427W refrigerator offers 12.9 cu.ft. of storage capacity. Frost-free operation ensures minimum user maintenance. The refrigerator section includes adjustable glass shelves, a large crisper drawer, and door storage, while the large freezer includes a removable shelf and two door racks. This unit has a user-reversible door swing and can be installed to the left or right of your kitchenette. The C48EL kitchenette includes a 2-burner coil cooktop with a pre-installed 115V 3-prong power cord for easy setup. The stainless steel sink features a hot and cold water faucet. A large storage cabinet includes a removable shelf. The ACKDW75 ships with our European DW242WADA dishwasher, with an ENERGY STAR certified ultra quiet performance that runs at just 47 dB. This dishwasher is designed with a fully featured stainless steel interior for versatile loading. The intuitive top-located digital controls let you choose between 8 wash programs with 5 auxiliary functions, including a half-load setting for added water savings. The dishwasher also includes its own pre-installed 3-prong cord. In addition to the ACKDW75, Summit's expanded selection of all-in-one kitchenettes includes choices with full-sized ranges, washer/dryer laundry combos, water pumps for no-plumbing applications, and much more. Explore the full lineup or contact our product specialists for more information.
Read More

Available from AM Direct Appliances INC, serving customers throughout Illinois,Arizona, Indiana, WI.

Features
Specifications

Features

Complete all-in-one kitchenette

Includes a full-sized refrigerator-freezer, 24" dishwasher, 2-burner cooktop, sink with faucet, and storage cabinet

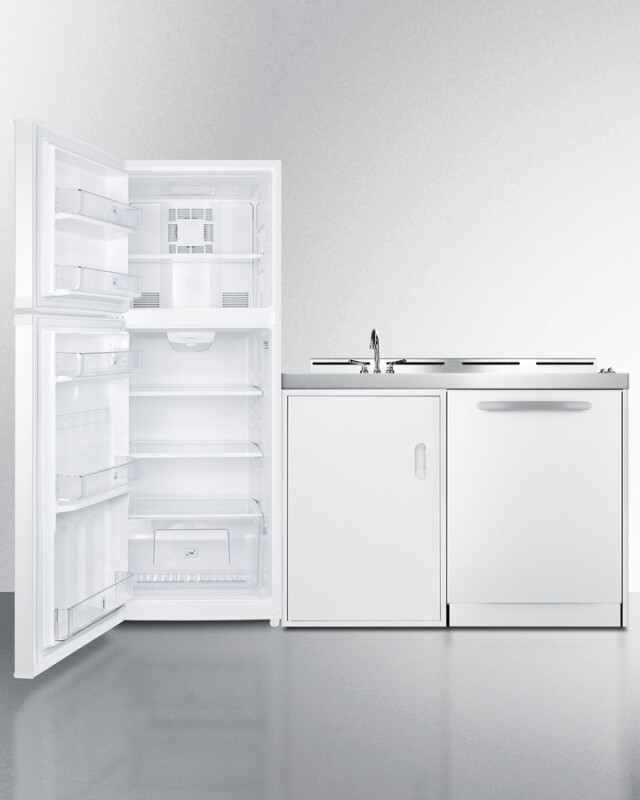

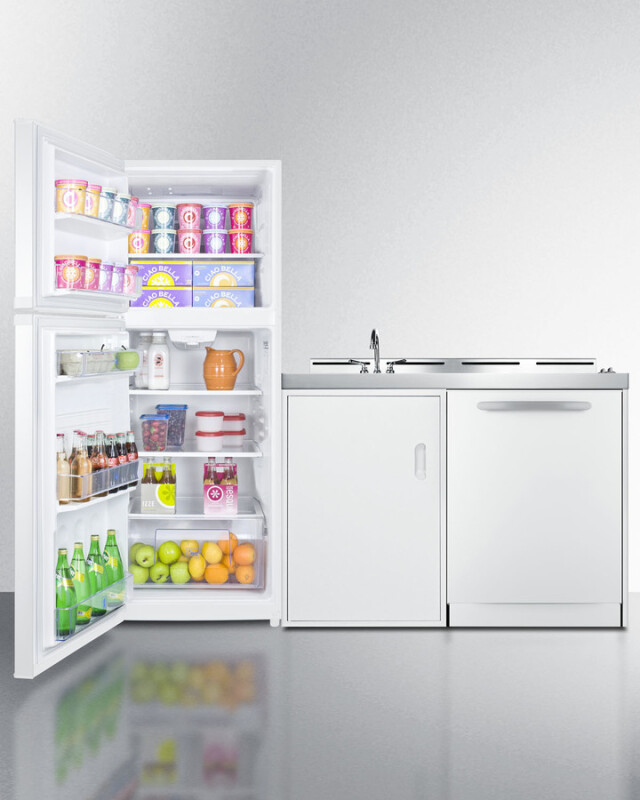

Full-sized refrigerator-freezer included

Ships with Summit FF1427W, a frost-free refrigerator-freezer with an 12.9 cu.ft. capacity, adjustable glass shelves, door storage, and a large crisper

Reversible doors

Refrigerator and freezer door swing can be switched to best accommodate your setup

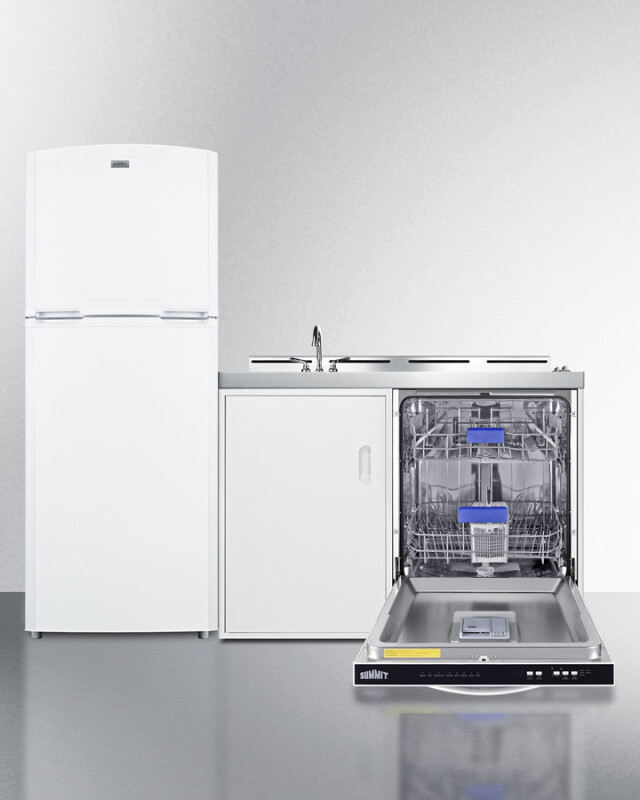

Dishwasher included

Includes Summit DW242WADA, a European ENERGY STAR certified dishwasher with top-located digital controls, 8 wash programs, two slide-out racks, and an ultra quiet 47 dB performance

16 wash cycles

Multiple options to meet all of your fabric needs, including specialty settings for babywear, wool, delicates, activewear, and more

Two electric burners

120V coil elements for easy cooking

Sink and faucet

Stainless steel sink comes ready to wash

Storage compartment

Large convenient cabinet with center shelf lets you store dry goods behind a door

One piece stainless steel countertop

Easy to clean and built to last

Fast assembly

Each unit includes its own pre-installed power cord for easy setup. This item ships in three boxes

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Specifications

Overview

Height of Cabinet40.0" (102 cm)
Width74.75" (190 cm)
Depth26.0" (66 cm)
Depth with door at 90°49.5" (126 cm)
Capacity12.9 cu.ft. (365 L)
DishwasherStandard
Defrost TypeFrost-Free
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Voltage/Frequency115 V AC/60 Hz
Weight300.0 lbs. (136 kg)
Shipping Weight350.0 lbs. (159 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101086934

Kitchenette

Refrigerator IncludedFF1427W
Refrigerator Door SwingRHD
ReversibleYes
Adjustable ShelvesYes
Shelf TypeGlass
Shelf Qty3
Crisper Qty1
Crisper FinishTransparent
Crisper CoverGlass
Full Door Shelves5
Thermostat TypeDial
Interior LightYes
Refrigerant TypeR134a
Refrigerant Amount3.5 oz.
Cooking TypeCoil Cooktop
Number of Burners2
Cooktop ControlsDial
Interior Height 137.88" (96 cm)
Interior Width 121.0" (53 cm)
Interior Depth 119.63" (50 cm)
Interior Height 218.5" (47 cm)
Interior Width 220.75" (53 cm)
Interior Depth 216.0" (41 cm)
Compressor Step Height10.5" (27 cm)
Compressor Step With21.0" (53 cm)
Compressor Step Depth7.0" (18 cm)
Sink Height5.88" (15 cm)
Sink Width16.75" (43 cm)
Sink Depth14.88" (38 cm)

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width74.75 in.
Height40 in.
Length26 in.
Weight300 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width79.75 in.
Shipping Height45 in.
Shipping Length31 in.
Shipping Weight350 lbs.
Total of Shipping Weight350 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement44.99 ft³
Dimensional Weight559.28 lbs.
Total of Cubes44.99 ft³
Total of Dimensional Weight559.28 lbs.

Overview Kitchenette

Height of Cabinet40.0" (102 cm)
Width74.75" (190 cm)
Depth26.0" (66 cm)
Depth with door at 90°49.5" (126 cm)
Capacity12.9 cu.ft. (365 L)
DishwasherStandard
Defrost TypeFrost-Free
DoorWhite
CabinetWhite
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Voltage/Frequency115 V AC/60 Hz
Weight300.0 lbs. (136 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101086934
Refrigerator IncludedFF1427W
Refrigerator Door SwingRHD
ReversibleYes
Adjustable ShelvesYes
Shelf TypeGlass
Shelf Qty3
Crisper Qty1
Crisper FinishTransparent
Crisper CoverGlass
Full Door Shelves5
Thermostat TypeDial
Interior LightYes
Refrigerant TypeR134a
Refrigerant Amount3.5 oz.
Cooking TypeCoil Cooktop
Number of Burners2
Cooktop ControlsDial
Interior Height 137.88" (96 cm)
Interior Width 121.0" (53 cm)
Interior Depth 119.63" (50 cm)
Interior Height 218.5" (47 cm)
Interior Width 220.75" (53 cm)
Interior Depth 216.0" (41 cm)
Compressor Step Height10.5" (27 cm)
Compressor Step With21.0" (53 cm)
Compressor Step Depth7.0" (18 cm)
Sink Height5.88" (15 cm)
Sink Width16.75" (43 cm)
Sink Depth14.88" (38 cm)
